Product Overview
Overview

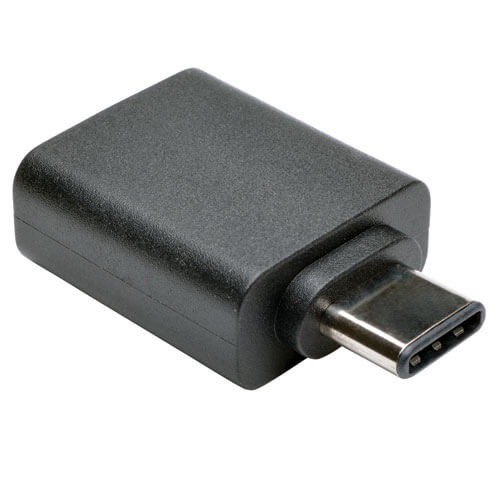

The U428-000-F USB 3.1 Gen 1 Adapter connects your new USB-C smartphones, tablets, Ultrabooks and computers to your existing USB-A devices or cables in order to share data or charge a mobile device. It supports USB 3.1 Gen 1 data transfer speeds up to 5 Gbps and power output up to 3A for fast charging of mobile devices. Unlike traditional USB connectors that can be attached only one way, the reversible USB-C male connector plugs into a USB port in either direction for fast, fumble-free connection every time. Nickel-plated molded end connectors and gold-plated copper contacts ensure superior conductivity and long life. Slim form supports evolving design trends toward smaller devices. Backward compatible with USB 2.0 devices.
USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum
Features
Supports USB 3.1 Gen 1
- Data transfer speeds up to 5 Gbps—10 times faster than USB 2.0
- Supports power output up to 3A—perfect for fast charging most mobile devices
- Uses same USB-A female connector as USB 3.0 devices
- Backward compatible with USB 2.0 devices
Reversible USB-C Male Connector
- Fumble-free reversible plug ensures fast, easy connection every time
- Strong enough for tablets, laptops and other larger platforms
Premium Construction
- Gold-plated copper contacts and nickel-plated molded ends provide a lifetime of heavy use and superior conductivity
- Slim, sleek design tailored for emerging design trends toward smaller devices
System Requirements
- Device with USB-C port
- Device or cable with USB-A plug
Package Includes
- U428-000-F USB 3.1 Gen 1 (5 Gbps) Adapter, USB-C to USB-A M/F
Specifications
OVERVIEW
| UPC Code | 037332190826 |
INPUT
| Bus Powered | Yes |
POWER
| Power Consumption (Watts) | 0.10 |
PHYSICAL
| Material of Construction | PVC |
| Color | Black |
| Shipping Dimensions (hwd / in.) | 3.90 x 5.90 x 0.50 |
| Shipping Weight (lbs.) | 0.02 |
| Unit Dimensions (hwd / in.) | 0.4 x 0.7 x 0.8 |
| Unit Packaging Type | Polybag |
| Unit Weight (lbs.) | 0.01 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 158 F (0 to 70 C) |
| Storage Temperature Range | 14 to 176 F (-10 to 80 C) |
| Relative Humidity | 10% to 90 % RH, Non-Condensing |
| BTUs | 0.34 BTU/Hr |
| Power Provided to Connected Device(s) | 5V 3A (15W) Output |
CONNECTIONS
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 1 | USB 3.0 A (FEMALE) |
| Connector Plating | Nickel |
FEATURES & SPECIFICATIONS
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Driver Required | No |
| UASP Support | Yes |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
