Product Overview
Features

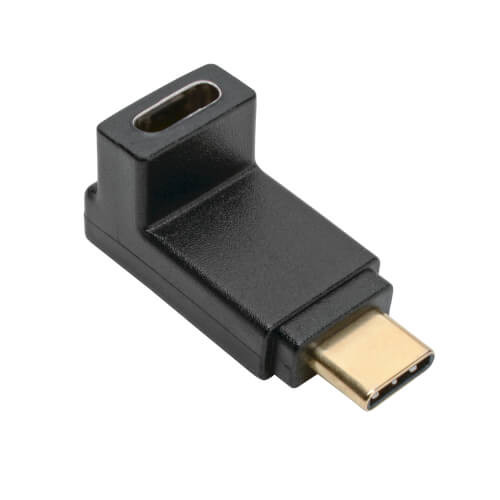

USB Type-C to USB Type-C Adapter Connects an Existing USB-C Device to Your USB-C Laptop
This compact adapter allows you to connect USB-C devices to your smartphone, tablet, laptop, MacBook, Chromebook or Ultrabook’s USB-C or Thunderbolt 3 port. External hard drives, hubs, wall chargers and other peripherals with USB-C ports will be able to communicate with your computer or other USB-C mobile device.
Transfers Data and Charges Devices at Lightning-Fast USB 3.1 Gen 2 Speeds
The adapter supports USB 3.1 Gen 2 data transfer rates up to 10 Gbps, which is twice as fast as USB 3.1 Gen 1. It also provides power output up to 3 amps (60 watts), which is sufficient for fast-charging, syncing and powering most devices.
Reversible USB-C Connectors Attach in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible USB-C male connectors plug into a USB-C or Thunderbolt 3 port in either direction for a fumble-free connection every time. The unit is backward compatible with USB 3.0 devices.
Right-Angle USB-C Connector Makes Installation in Tight Spaces Easier
The space-saving right-angle female connector is easy to install in confined spaces, such as behind your computer desk or workstation. You can install the unit facing either up or down to gain convenient vertical access to that USB-C connection.
System Requirements
- Devices with USB-C or Thunderbolt 3 ports (USB 3.1 Gen 2 compatibility required to achieve USB 3.1 Gen 2 speeds)
Package Includes
- U420-000-F-UD USB-C to C Adapter (M/F)
Specifications
OVERVIEW
| UPC Code | 037332218360 |
PHYSICAL
| Material of Construction | PVC |
| Color | Black |
| Shipping Dimensions (hwd / in.) | 5.90 x 3.90 x 0.50 |
| Shipping Weight (lbs.) | 0.02 |
| Unit Packaging Type | Polybag |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
CONNECTIONS
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 1 | USB C (FEMALE) - RIGHT ANGLE |
| Connector Plating | Gold |
| Contact Plating | Gold |
FEATURES & SPECIFICATIONS
| USB Specification | USB 3.1 Gen 2 (up to 10 Gbps) |
STANDARDS & COMPLIANCE
| Certifications | Tested to CE, FCC, RoHS and REACH |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
