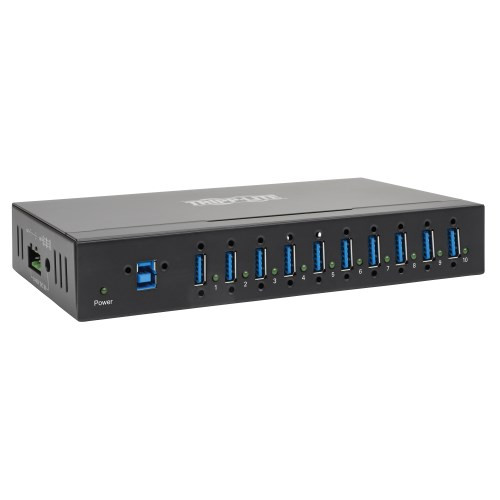

Industrial-Grade USB 3.0 Hub Adds up to 10 USB Devices to Your Computer
This 10-port USB 3.0 hub with a heavy-duty all-metal housing connects as many as 10 USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host PC, server or thin client. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses.
Supports SuperSpeed USB 3.0 to Ensure Fast Data Transfers
The hub supports USB 3.0 SuperSpeed data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. It is especially recommended for high-bandwidth USB 3.0 devices, such as security cameras and high-resolution webcams. Each downstream port provides up to 900 mA for charging mobile devices. The hub is backward compatible with previous USB standards, so you can also continue using older peripherals while getting maximum performance from current devices.
Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This 10-port hub includes ESD protection to ±20 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with ±2.5kV-per-port overcurrent protection to safeguard your connected devices against damage and data loss from power surges.
Plug-and-Play Hub Offers Flexible Power and Mounting Options
The U360-010-IND requires no software or drivers to download and install. It draws power from the connected computer through the included USB cable. You can also plug the included 3-wire terminal block into the hub to draw power from a power terminal, or connect a compatible 9–40V DC LPS power supply (not included) to a standard AC outlet. The hub mounts easily to a wall or DIN rail using the included hardware.
Typical Applications
Connect up to 10 USB devices and peripherals to your computer or laptop
Add easy-to-access USB ports to computers stored in a cabinet, behind furniture or other hard-to-reach location
Mount to a wall or DIN rail in a harsh environment, such as a factory, construction site, supply room or warehouse
Package Includes
U360-010-IND 10-Port Industrial-Grade USB 3.0 SuperSpeed Hub
USB 3.0 cable, 3 ft.
3-pin power terminal block
DIN rail-mounting hardware
Wall-mounting hardware
Owner’s manual
System Requirements
Compatible with all USB-enabled operating systems (USB 3.0 port needed to achieve USB 3.0 speeds)
If using an optional LPS power supply, requires 9–40V DC unit with 5.5 x 2.1 x 9.5 mm output plug with either positive pin/negative sleeve or negative pin/positive sleeve
Specifications
OVERVIEW
UPC Code
037332231246
Product Type
Hub
AC Adapter
Input: 100-240V, 50/60Hz, 1.5A; Output: 9-40V, 3A
Host Connector
USB A (MALE)
VIDEO
Number of Monitors Supported
0
Extended Mode
No
Mirror Mode
No
DATA
Data Ports
(10) USB A (FEMALE)
Data Ports Details
(10) USB-A - USB 3.2 Gen 1 (5 Gbps)
INPUT
Voltage Compatibility (VAC)
100; 110; 120; 125; 127; 200; 208; 220; 230; 240
Bus Powered
Yes
Product Length (in.)
7.913
Product Length (cm.)
20.1
Product Length (ft.)
0.659
Product Length (m.)
0.201
POWER
External Power Supply Input Specs (V / Hz / A)
100-240V / 50/60Hz / 0.6A
External Power Supply Output Specs (V / A)
9V - 40V / 3A
DC Barrel Plug
OD: 5.5 x 2.1 x 9.5mm, Positive Pin, Negative Sleeve
USB Power Delivery (PD) Charging Support
No
USER INTERFACE, ALERTS & CONTROLS
LED Indicators
Green (Power, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10)
PHYSICAL
Color
Black
Material of Construction
Metal
Included Mounting Accessories
Yes
Shipping Dimensions (hwd / in.)
2.60 x 4.50 x 9.00
Shipping Weight (lbs.)
1.40
Unit Dimensions (hwd / in.)
1.3 x 7.9 x 3.2
Unit Packaging Type
Box
Unit Weight (lbs.)
0.95
ENVIRONMENTAL
Operating Temperature Range
32 to 140 °F (0 to 60 °C)
Storage Temperature Range
14 to 176 °F (-10 to 80 °C)
Relative Humidity
5% to 90% RH, Non-Condensing
BTUs
4.55-175.2 BTU/Hr
Power Consumption (Watts)
51.3
Power Provided to Connected Device(s)
5V 0.9A (4.5W) Output (USB-A 3.0)
Power Consumption Detail
1.33-51.3 W
CONNECTIONS
Ports
10
Side A - Connector 1
USB 3.0 B (MALE)
Side B - Connector 1
(10) USB 3.0 A (FEMALE)
Connector Plating
Nickel
FEATURES & SPECIFICATIONS
Over Current Protection
Yes
USB Specification
USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
