Product Overview
Features

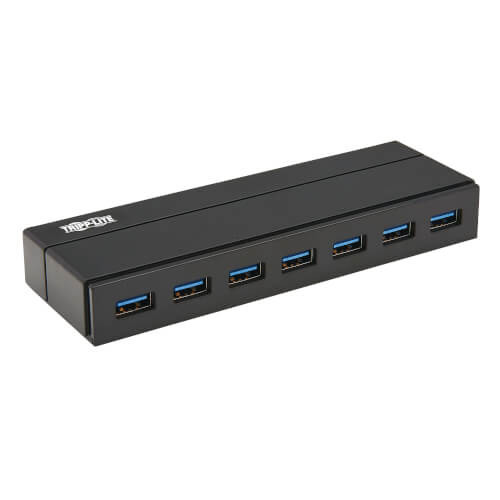

USB 3.0 Hub Adds up to 7 USB Devices to Your Computer, MacBook or Chromebook
This 7-port USB 3.0 hub connects directly to the USB-A port on your computer, laptop, MacBook, Surface or Chromebook. It allows you to use as many as seven USB devices, such as flash drives, external hard drives, printers, barcode scanners, webcams, keyboards/mice and power meters, all at the same time. The hub is backward compatible with previous USB standards, so you can also continue using older peripherals while getting maximum performance from current devices.
Supports SuperSpeed USB 3.0 to Ensure Fast Data Transfers and Device Charging
The hub supports USB 3.0 SuperSpeed data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. It is especially recommended for high-bandwidth USB 3.0 devices, such as security cameras and high-resolution webcams. All seven USB-A ports support USB BC (Battery Charging) 1.2 specifications for fast-charging compatible devices at 5V 2.4A.
Plug-and-Play Hub Comes Ready to Connect Right Away
The plug-and-play U360-007 works with Windows and Mac computers and requires no software or drivers to download and install. An external power supply with five-foot cord and NEMA 1-15P plug is included. The hub protects connected devices against overcurrent. An easy-to-see blue LED indicates the unit is providing power.
Sleek and Slim Housing Designed for Everyday Workspace Use or Connecting on the Go
The compact unit is designed for convenient positioning within your reach, making USB ports accessible while not taking up much workspace. It is slim enough to pack in your pocket, purse or laptop bag for use in a hotel, conference room or airport.
Typical Applications
- Connect up to 7 USB peripherals, such as an external hard drive, MP3 player, power meter and printer, to your MacBook, Chromebook or Surface
- Add easy-to-access USB ports to computers stored in a cabinet, behind furniture or other hard-to-reach location
Package Includes
- U360-007 7-Port USB 3.0 SuperSpeed Hub
- USB 3.0 cable, 3 ft.
- External power supply with 5 ft. cord and NEMA 1-15P plug (Input: 100–240V, 50/60 Hz, 1.5A Max; Output: 12V 3A)
System Requirements
- Compatible with all USB-enabled operating systems (USB 3.0 port needed to achieve USB 3.0 speeds)
Specifications
OVERVIEW
| UPC Code | 037332178480 |
| Product Type | Hub |
| AC Adapter | Input: 100-240V, 50/60Hz, 0.8A Max / Output: 12V, 2A |
| Host Connector | USB A (MALE) |
VIDEO
| Number of Monitors Supported | 0 |
| Extended Mode | No |
| Mirror Mode | No |
DATA
| Data Ports | (7) USB A (FEMALE) |
| Data Ports Details | (7) USB-A - USB 3.2 Gen 1 (5 Gbps) |
INPUT
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
| External Power Supply Plug(s) | NEMA 1-15P North America |
| Bus Powered | No |
| Product Length (in.) | 6.102 |
| Product Length (cm.) | 15.5 |
| Product Length (ft.) | 0.508 |
| Product Length (m.) | 0.155 |
POWER
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 1.5A |
| External Power Supply Output Specs (V / A) | 12V / 3A |
| External Power Supply Cord Length (ft.) | 5 |
| External Power Supply Cord Length (m.) | 1.5 |
| DC Barrel Plug | OD: 5.5 x 2.5 x 10mm, Positive Pin, Negative Sleeve |
| External Power Supply Certifications | cUL; RoHS |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | Blue (Power) |
CHARGING
| Charging Ports | USB-A: 5V 1.5A (7.5W); 2.4A Quick Charge |
| Charging Ports / Amps | (1) 2A |
PHYSICAL
| Color | Black |
| Material of Construction | ABS |
| Shipping Dimensions (hwd / in.) | 5.51 x 5.91 x 3.54 |
| Shipping Weight (lbs.) | 0.79 |
| Unit Dimensions (hwd / in.) | 0.87 x 6.1 x 2 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.00 |
ENVIRONMENTAL
| Operating Temperature Range | -4 to 158 F (-20 to 70 C) |
| Storage Temperature Range | -4 to 185 F (-20 to 85 C) |
| Relative Humidity | 20% to 80% RH, Non-Condensing |
| BTUs | 4.8 BTU/Hr |
| Power Consumption (Watts) | 1.4 |
| Power Provided to Connected Device(s) | 5V 0.9A (4.5W) Output (USB-A 3.0), 5V 2A (10W) Output (USB 2A Charger) |
CONNECTIONS
| Ports | 7 |
| Side A - Connector 1 | USB 3.0 A (MALE) |
| Side B - Connector 1 | (7) USB 3.0 A (FEMALE) |
| Connector Plating | Nickel |
FEATURES & SPECIFICATIONS
| Over Current Protection | 2.93A |
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Driver Required | No |
STANDARDS & COMPLIANCE
| Certifications | RoHS, FCC, WEEE, EAC |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
