Product Overview
Overview

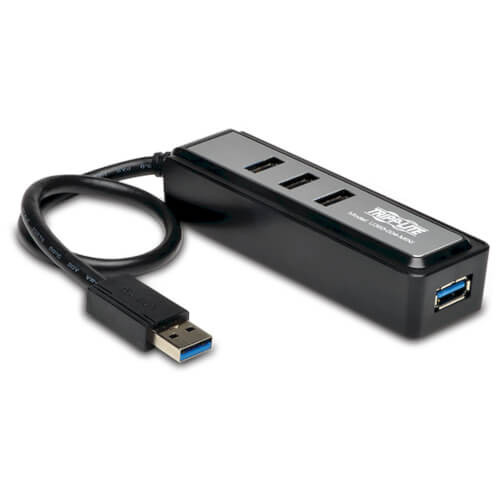

Tripp Lite U360-004-MINI is a compact, 4-Port USB 3.0 SuperSpeed hub, with built-in cable, that provides up to 5Gbps transfer rates in a compact, portable format ( Computer and devices must be both USB3.0 rated to achieve maximum 5Gbps speeds ). Hub is backward compatible to USB 2.0 and 1.1, so that older USB devices can be attached ( devices will run at their native speeds of 480Mbps and 12Mbps respectively ).
Small, portable design allows the hub to travel easily, and built-in cable eliminates the need to carry a separate cable for attachment to laptops and tablets. Needed power comes from the attached computer... no need for external power adapter. Plug-n-Play...no drivers or software required. Works with all Windows and MAC operating systems.
Features
- Add 4 additional USB 3.0 ports to your PC, Laptop, or Tablet
- Compact design...4in long by 1.25in wide by .75in high
- Built-in 1-ft. attachment cable
- USB 3.0 SuperSpeed 5gbps
- Plug-n-Play...no drivers or software to load
- Bus powered...separate power supplied not needed
- Compatible with all Windows and MAC OS
- Backward compatible with Hi-Speed ( 480Mbps ), Full Speed ( 12Mbps ), and Low Speed ( 1.5Mbps) USB versions
System Requirements
- Desktop, Laptop or Tablet with USB 3.0 USB port
- USB 3.0 ( or less ) Peripherals
Package Includes
- Portable USB 3.0 SuperSpeed Hub - 4-Port
Specifications
OVERVIEW
| UPC Code | 037332184726 |
| Product Type | Hub |
| Host Connector | USB A (MALE) |
VIDEO
| Number of Monitors Supported | 0 |
| Extended Mode | No |
| Mirror Mode | No |
DATA
| Data Ports | (4) USB A (FEMALE) |
| Data Ports Details | (4) USB-A - USB 3.2 Gen 1 (5 Gbps) |
INPUT
| Bus Powered | Yes |
| Product Length (in.) | 16.8 |
| Product Length (cm.) | 42.67 |
| Product Length (ft.) | 1.4 |
| Product Length (m.) | 0.426 |
POWER
| Power Consumption (Watts) | 0.77 |
PHYSICAL
| Material of Construction | Plastic |
| Color | Black; Silver |
| Cable Jacket Rating | VW-1 |
| Included Mounting Accessories | No |
| Shipping Dimensions (hwd / in.) | 5.50 x 3.90 x 1.20 |
| Shipping Weight (lbs.) | 0.24 |
| Unit Dimensions (hwd / in.) | 0.8 x 4.3 x 1.3 |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 0.13 |
ENVIRONMENTAL
| Operating Temperature Range | -4 to 158 F (-20 to 70 C) |
| Storage Temperature Range | -4 to 185 F (-20 to 85 C) |
| Relative Humidity | 20% to 80% RH, Non-Condensing |
| BTUs | 2.6 BTU/Hr |
| Power Provided to Connected Device(s) | 5V 0.9A (4.5W) Output per USB port |
CONNECTIONS
| Number of Ports | 4 |
| Side A - Connector 1 | USB 3.0 A (MALE) |
| Side B - Connector 1 | (4) USB 3.0 A (FEMALE) |
| Connector Plating | Nickel |
FEATURES & SPECIFICATIONS
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Driver Required | No |
STANDARDS & COMPLIANCE
| Certifications | CE, FCC, RoHS, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
