Description
Overview

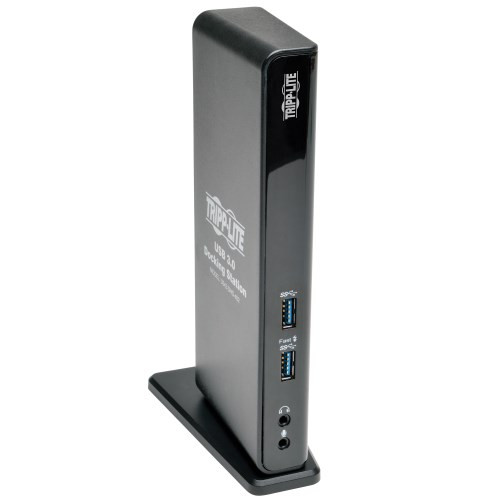

Universal USB dock adds HDMI, DVI, 3.5 mm audio, Gigabit Ethernet and six USB ports to your computer, laptop or other device with a USB-A port. Two of the six USB-A ports support USB 3.2 Gen 1 speeds up to 5 Gbps. One USB 3.0 port also supports BC 1.2 charging with 5V 1.5A (7.5W) of power dedicated to fast-charging your mobile device.
The universal USB docking station features two independent external monitor outputs (HDMI, DVI) that can be used to expand or mirror your computer's main desktop. Both HDMI and DVI outputs support video resolutions up to 2048 x 1152 @ 60 Hz, including 1080p, and can be used simultaneously. A DVI monitor can be connected to the HDMI port via an HDMI-to-DVI adapter (sold separately). A VGA monitor can be connected to the DVI-I port using a DVI-to-VGA adapter (sold separately).
An all-in-one solution, the U342-DHG-402 also features audio ports for connecting a microphone and speakers, as well as an RJ45 port for connecting to a Gigabit Ethernet network. The USB dock supports true 10/100/1000 Mbps (1 Gbps) Gigabit Ethernet speeds.
The U342-DHG-402 is an ideal accessory for enhancing laptop capability for users who need to connect and manage multiple devices at home or at the office. Compatible with Windows and Mac computers.
Features
- USB 3.0 is 10 times faster than USB 2.0 and supports data transfer rates of up to 5 Gbps
- Backward compatible with USB 2.0 and 1.1
- DVI-I and HDMI ports for connection of external monitors
- A VGA monitor can be connected to the DVI-I port using a DVI-to-VGA adapter, such as a Tripp Lite P556-Series cable
- A DVI monitor can be connected to the HDMI port using an HDMI-to-DVI adapter, such as a Tripp Lite P566-Series cable
- Supports video resolutions of up to 2048 x 1152 @ 60 Hz
- Automatically resumes operation from hibernation and suspend modes
- Gigabit Ethernet port supports true 10/100/1000 Mbps network speeds
- IEEE 802.3az (Energy Efficient Ethernet) compliant
- Supports full duplex and half duplex operations
- Supports IPv4 and IPv6 pack Checksum Offload Engine (COE) to reduce CPU loading
- Supports Wake-on LAN, VLAN tagging and Auto-MDIX
- Two USB 3.0 and four USB 2.0 hub ports for connection of additional USB peripherals
- One USB 3.0 port supports USB Battery Charging (BC) specification 1.2, allowing it to provide 1.5 amps of power for faster charging of mobile devices
- 3.5 mm Mini Stereo jacks for connection of speaker and microphone
- Compatible with Windows 7 and later, Windows 10
- Compatible with Mac OS 10.8.5 and later, Mac 10.11
System Requirements
- Windows® 7 / Windows 10 (32- and 64-bit), 8 (32- and 64-bit), 8.1 (32- and 64-bit) or 10 (32- and 64-bit)
- Mac OS X 10.8.5 and later, Mac 10.11
- Available USB port (USB 3.0 required for USB 3.0 speeds)
- VGA*, DVI or HDMI monitor
- 1.6 GHz Single Core processor (DVD playback on the add-on monitor requires a 2.0 GHz Dual Core processor)
- 1 GB RAM
- 30 MB of available disk space ( * Requires a DVI-VGA adapter, such as Tripp Lite P556- Seris cable )
Package Includes
- U342-DHG-402
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60 Hz, 0.8A; Output: 5V, 4A) – 6 ft.
- USB 3.0 A/B Cable – 3 ft.
- Driver CD
- Owner’s Manual
Specifications
OVERVIEW
| UPC Code | 037332182586 |
| Product Type | Docking Station |
| Technology | Cat5/5e; Cat6; DVI; HDMI; Stereo Audio |
| Host Connector | USB A (MALE) |
VIDEO
| Number of Monitors Supported | 2 |
| Video Ports | DVI-I (FEMALE); HDMI (FEMALE) |
| Video Ports Details | HDMI 1.3 |
| Resolutions Supported | Both HDMI and DVI outputs support video resolutions up to 2048 x 1152 @ 60 Hz |
| Max Supported Video Resolution | 2048 x 1152 @60Hz |
| Extended Mode | Yes |
| Extended Mode Details | Supports HDMI and DVI can be simultaneously extended at 1080p each |
| Mirror Mode | Yes |
| Mirror Mode Details | Supports HDMI and DVI can be simultaneously mirrored at 1080p each |
AUDIO
| Audio Ports | (2) 3.5MM (FEMALE) |
| Audio Ports Details | Separate 3.5 mm mini stereo jacks for speakers and microphone |
| Audio Specification | (x1) 3.5mm Microphone Jack; (x1) 3.5mm Stereo jack |
DATA
| Data Ports | (2) USB A (FEMALE) |
| Data Ports Details | (1) USB-A - USB 3.2 Gen 1 (5 Gbps) |
NETWORK
| Network Ports | RJ45 (FEMALE) |
INPUT
| Voltage Compatibility (VAC) | 100; 110; 120; 127; 200; 208; 220; 230; 240 |
| External Power Supply Plug(s) | NEMA 1-15P North America |
| Bus Powered | No |
BATTERY
| Battery Charging (5V/1.5A Port) | Yes |
POWER
| External Power Supply Input Specs (V / Hz / A) | 100-240V / 50/60Hz / 0.8A |
| External Power Supply Output Specs (V / A) | 5V / 4A |
| External Power Supply Cord Length (ft.) | 6 |
| DC Barrel Plug | OD: 4.75 x 1.7 x 9.5mm, Positive Pin, Negative Sleeve |
| External Power Supply Certifications | FCC; UL; RoHS |
| USB Power Delivery (PD) Charging Support | No |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | Blue (Power), Green (USB) |
CHARGING
| Total Charging Watts | 0 |
| Charging Ports | USB-A: 5V 1.5A (7.5W) |
| Charging Ports / Amps | 1.5A |
PHYSICAL
| Color | Black |
| Material of Construction | ABS |
| Shipping Dimensions (hwd / in.) | 4.10 x 8.40 x 5.10 |
| Shipping Weight (lbs.) | 2.30 |
| Unit Dimensions (hwd / in.) | 1.2 x 7.4 x 3 (Base is 2.8 x 5) |
| Unit Packaging Type | Box |
| Unit Weight (lbs.) | 1.30 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
| Storage Temperature Range | 14 to 176 F (-10 to 80 C) |
| Relative Humidity | 0% to 90 RH, Non-Condensing |
| BTUs | 15.4 BTU/Hr |
| Power Consumption (Watts) | 4.5 |
| Power Provided to Connected Device(s) | 5V 1.5A (7.5W) Output per BC 1.2 USB Port, 5V 0.9A (4.5W) Output per USB 3.0 Port, 5V 0.5A (2.5W) Output per USB A Ports |
COMMUNICATIONS
| Network Compatibility | 1 Gbps (Gigabit) |
| IEEE Standards Supported | 802.3az |
CONNECTIONS
| Ports | 9 |
| Dock Connectors | 2x 3.5mm, 2x USB3.0A, RJ45, HDMI, DVI-I, 4x USB2.0 |
| Side A - Connector 1 | USB 3.0 A (MALE) |
| Side B - Connector 1 | HDMI (FEMALE) |
| Side B - Connector 2 | (2) USB 3.0 A (FEMALE) |
| Side B - Connector 3 | DVI-I (FEMALE) |
| Side B - Connector 4 | RJ45 (FEMALE) |
| Side B - Connector 5 | (4) USB A (FEMALE) |
| Side B - Connector 6 | (2) 3.5MM (FEMALE) |
| Connector Plating | Nickel |
FEATURES & SPECIFICATIONS
| HDCP Specification | 1.3 |
| USB Hub Ports | Yes |
| Number of USB Hub Ports | 6 |
| USB Specification | USB 2.0 (up to 480 Mbps); USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Driver Required | Yes |
| Recommended Category Cable | Cat5/Cat5e/Cat6 Cables |
| Auto MDIX Support | Yes |
| Full Duplex Support | Yes |
| Remote Wakeup Support | Yes |
STANDARDS & COMPLIANCE
| Certifications | Tested to CE, FCC, RoHS, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
