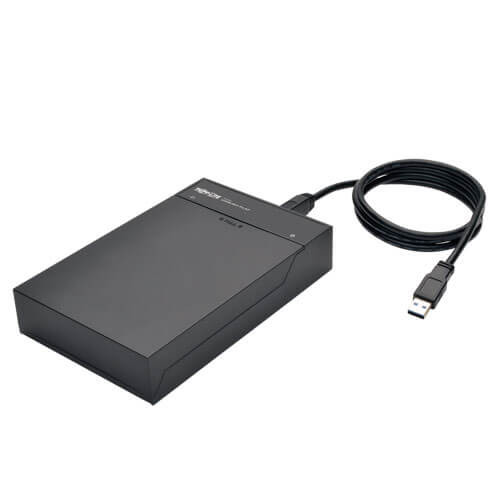

The U339-001-FLAT USB 3.0 to SATA Hard Drive Lay-Flat Enclosure allows you to quickly and easily add storage and transfer data to your computer or laptop from a SATA hard drive. It lays flat to take up little space and maintain stability. Just insert a 2.5-in. or 3.5-in. SATA HDD (Hard Disk Drive) or SSD (Solid State Drive) into the slot, and connect the included 4-ft. (1.22 m) USB 3.0 cable to the USB port on your computer. Slide the protective cover over the dock, even when it's in use, to keep the SATA drive dust-free at all times. The docking station accepts SATA III (6 Gbps), SATA II (3 Gbps) and SATA I (1.5 Gbps) drives. It supports USB 3.0 (5 Gbps), USB 2.0 (480 Mbps) and USB 1.1 (12 Mbps) transfer speeds, as well as UASP (USB Attached SCSI Protocol), which transfers data faster than conventional USB 3.0 and requires a UASP-enabled host controller. Plug-and-play configuration means it works right out of the box with no software or drivers to download or install. Green LED indicates the unit is connected to a USB port. Blue LED indicates the unit is receiving power. Works with Windows and Mac.
Features
Easy to Use Right from the Box
Lays flat for stable performance
Plug and play—no extra software or drivers to download or install
SATA drive slides easily into convenient slot
Protective cover keeps dust and dirt away from sensitive SATA drives
On/off button powers off SATA drive when not in use
LEDs indicate when the unit is powered on and connected
Compliant with Most Applications
Accepts 2.5-in. or 3.5-in. SATA III (6 Gbps), SATA II (3 Gbps) and SATA I (1.5 Gbps) drives
Supports USB 3.0 (5 Gbps), USB 2.0 (480 Mbps) and USB 1.1 (12 Mbps) transfer speeds
Supports UASP (USB Attached SCSI Protocol) for even faster transfer speeds than USB 3.0*
Works with both HDD (Hard Disk Drive) and SSD (Solid State Drive)
*Requires UASP-enabled host controller. UASP is supported by Windows 8 and later, Mac OS X 10.8 and later, and Linux.
System Requirements
Computer with available USB port (USB 3.0 port required to achieve USB 3.0 data transfer speeds)
2.5-in. or 3.5-in. SATA HDD or SSD
UASP-enabled host controller (for UASP data transfer speeds only)
Package Includes
U339-001-FLAT USB 3.0 to SATA Hard Drive Lay-Flat Enclosure
USB 3.0 A/B cable, 4-ft. (1.22 m) length
External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60 Hz, 0.8A; Output: 12V, 2A, 5-ft. (1.52 m)
Quick Start Guide
Specifications
OVERVIEW
UPC Code
037332188120
Technology
SATA/eSATA
POWER
AC Adapter
Input: 100-240V, 50/60Hz, 0.8A; Output: 12V, 2A, 5 ft.
