Product Overview
Features

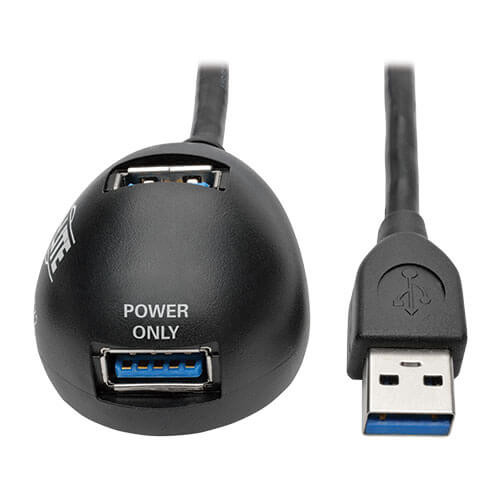

Expands an Existing USB 3.0 Port to 2 Ports and Extends Them an Extra 6 ft.
Enjoy SuperSpeed Transfer Rates in High-End Applications
First-Rate Construction for Superior Signal Transfer
- Move a hard-to-reach USB port within easy access
- Ideal for connecting external hard drives, thumb drives, digital cameras and other USB-A devices
- Features one USB 3.0 data/power port and one power-only port
Enjoy SuperSpeed Transfer Rates in High-End Applications
- Supports data transfer rates up to 5 Gbps—10x the speed of USB 2.0
- Bi-directional interface allows data to flow both directions at the same time, increasing theoretical bandwidth by 10x
- Backward compatible with earlier USB generations
First-Rate Construction for Superior Signal Transfer
- Premium foil and braid shielding blocks EMI/RFI interference
- Molded nickel-plated connectors ensure excellent connectivity
- Integral strain relief for cable and connectors’ long life
- Twisted 28/24 AWG data/power lines
- Flexible PVC jacket easy to install in tight spaces
- Black padded non-sliding base
System Requirements
- Computer, laptop or other device with USB 3.0 port (to achieve USB 3.0 speeds)
Package Includes
- U324-006-DSK2 2-Port USB 3.0 SuperSpeed Desktop Extension Cable (M/2xF), 6 ft.
Specifications
OVERVIEW
| UPC Code | 037332199478 |
| Technology | USB; USB 3.x |
| USB Cable Type | Passive |
INPUT
| Maximum Input Amps | 2 |
CHARGING
| Total Charging Watts | 10 |
PHYSICAL
| Material of Construction | PVC |
| Color | Black |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter (OD) | 5.5mm |
| Cable Length (ft.) | 6 |
| Shipping Dimensions (hwd / in.) | 5.31 x 3.94 x 0.50 |
| Shipping Weight (lbs.) | 0.24 |
| Unit Packaging Type | Polybag |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
| Storage Temperature Range | 14 to 131 F (-10 to 55 C) |
| Relative Humidity | 5% to 90% RH, Non-Condensing |
| Operating Humidity Range | 0% to 90% RH, Non-Condensing |
| Storage Humidity Range | 0% to 90% RH, Non-Condensing |
| Power Provided to Connected Device(s) | 10W (5V/2A) |
CONNECTIONS
| Side A - Connector 1 | USB A (MALE) |
| Side B - Connector 1 | (2) USB A (FEMALE) |
| Connector Plating | Nickel |
| Contact Plating | Gold |
FEATURES & SPECIFICATIONS
| Data Transfer Rate | 5 Gbps |
| Over Current Protection | Yes |
| USB Specification | USB 3.2 Gen 1 (up to 5 Gbps) |
STANDARDS & COMPLIANCE
| Certifications | Tested to CE, FCC, RoHS, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
