Product Overview
Features

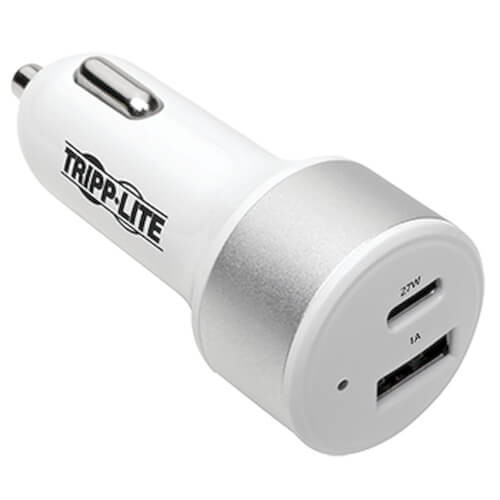

Dual USB Car Charger Charges 2 Mobile Devices in Your Vehicle Simultaneously
This dual-port USB car charger with Qualcomm Quick Charge 3.0 technology lets you quickly and safely charge one USB-C mobile device and USB-A mobile device at the same time. You and a passenger can connect your smartphones, tablets or MP3 players, to name just a few compatible devices, to ensure satisfactory battery charge when you reach your destination. The dual USB car charger adapter is certified to UL 2089 standards for vehicle battery adapters rated 24V DC or less.
USB-C PD Charging Port Charges up to 4 Times Faster Than Conventional 5W Chargers
The USB-C PD charging port is powered by advanced Quick Charge 3.0 technology. Instead of charging at a preset power level, this charger adjusts to one of three possible power levels to provide as much power as your QC-compliant device’s battery can handle. Available outputs include 3.6–6V 3A, 6–9V 2A and 9–12V 1.5A. The USB-A port supports up to 5V 1A to help ensure your smartphone is fully charged when you reach your destination.
Works with the 12V DC Power Outlet in Your Vehicle
The compact charger connects to any standard 12V DC vehicle power outlet, such as the one on your dashboard. Just plug it in, and connect your devices’ USB cables for fast, convenient mobile charging. An easy-to-see LED indicates the charger is receiving power. The U280-C02-C1A1 is compatible with Apple, Android, Windows and Amazon devices with USB-C, Thunderbolt 3 or USB-A charging ports.
System Requirements
- Vehicle with standard 12V DC power outlet
Package Includes
- U280-C02-C1A1 2-Port USB Car Charger - Quick Charge 3.0, UL 2089
Specifications
OVERVIEW
| UPC Code | 037332224767 |
| Product Type | Car Charger |
| Charging Form Factor | Direct Plug-In |
| Device Compatibility | Phone; Tablet; Amazon Kindle; Laptop; Chromebook |
INPUT
| Nominal Input Voltage(s) Supported | 12V DC |
| Input Connection Type | Automobile Cigarette Lighter |
| Input Plug Type | Car Auxiliary Power Outlet |
OUTPUT
| Output Capacity | 32W |
| Overload Protection | Yes |
POWER
| Power Consumption (Watts) | 32 |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | Blue (Power) |
CHARGING
| Number of Charging Ports | 2 |
| Total Charging Amps | 3.7A |
| Total Charging Watts | 32 |
| Charging Method | USB |
| Charging Port Type | USB A (FEMALE); USB C (FEMALE) |
| Charging Ports Details | USB-A: 5V 1A (5W) |
| Charging Ports / Amps | (1) 1A; (1) 3A / 2.25A |
PHYSICAL
| Material of Construction | Polycarbonate, ABS UL94V-0 |
| Color | White |
| Shipping Dimensions (hwd / in.) | 5.91 x 3.94 x 0.50 |
| Shipping Weight (lbs.) | 0.07 |
| Unit Dimensions (hwd / in.) | 1.19 x 2.69 x 1.19 |
| Unit Packaging Type | Polybag |
| Unit Weight (lbs.) | 0.06 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 104 F (0 to 40 C) |
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Operating Humidity Range | 30 TO 90% RH, Non-Condensing |
| Storage Humidity Range | 10 TO 90% RH, Non-Condensing |
CONNECTIONS
| Number of Ports | 2 |
| Side A - Connector 1 | Car Cigarette Lighter |
| Side B - Connector 1 | USB A (FEMALE); USB C (FEMALE) |
FEATURES & SPECIFICATIONS
| Over Current Protection | Yes |
| Driver Required | No |
| Quick Charge Compliant | No |
| Overcurrent Protection | Yes |
| Overvoltage Protection | Yes |
| GaN Technology | No |
STANDARDS & COMPLIANCE
| Certifications | Tested to CE, FCC, RoHS, REACH, UL 2089 3rd Edition |
WARRANTY
| Product Warranty Period (Worldwide) | 2-year limited warranty |
