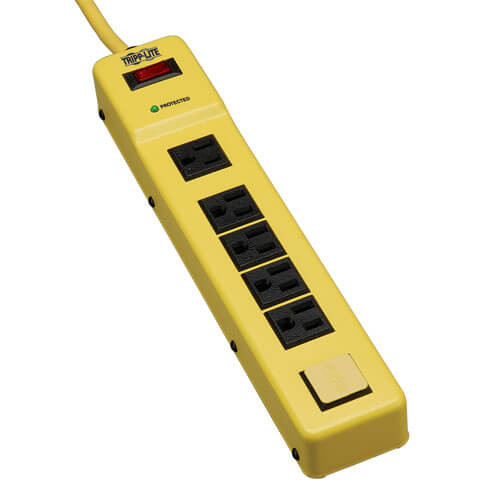

This Tripp Lite surge suppressor is designed to provide safe, reliable surge protection in harsh environments. A 900 joule rating can protect connected equipment against even the strongest surges. 6 outlets protect connected equipment against damaging surges, spikes and line noise. Convenient transformer outlets accommodate multiple transformers without blocking other outlets. A six-foot (1.8-meter) grounded cord reaches distant outlets. A lighted on/off switch with integrated circuit breaker provides power control over connected equipment. Breaker protects against dangerous system overload. Protected LED confirms that connected equipment is being protected. 4 safety covers shield unused outlets from debris and accidental contact. A rugged metal case stands up to the harshest environments. Integrated keyhole slots on bottom panel provide convenient wall/desk mounting. Tripp Lite will repair or replace any connected equipment damaged by surges up to $10,000 and for life! As an added safety feature, the surge suppressor's bright yellow color alerts you and others that power cords and tools are in use.
Features
6 outlets protect connected equipment against damaging surges, spikes and line noise
6 ft. grounded cord reaches distant outlets
Lighted ON/OFF switch with integrated circuit breaker provides power control over connected equipment. Breaker protects against dangerous system overload.
Protected LED - If this green LED ever goes out, Tripp Lite will replace your surge suppressor under warranty at no charge!
Convenient transformer outlets accommodate multiple transformers without blocking other outlets.
4 safety covers shield unused outlets from debris and accidental contact.
Rugged metal case stands up to the harshest environments.
Integrated keyhole slots on bottom panel provide convenient wall/desk mounting.
900 joules of surge protection
OSHA color guidelines, outlined in Document 1910.145, alert users to hazardous situations, which may cause minor or moderate injury. This Tripp Lite product complies with those guidelines.
$10,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required
Package Includes
TLM626SA Safety Surge Suppressor
4 safety covers
Owner's manual
Specifications
OVERVIEW
UPC Code
037332140104
INPUT
Nominal Input Voltage(s) Supported
120V AC
Recommended Electrical Service
120V (110-125V)
Input Cord Gauge Type
14 gauge; SJT
Input Cord Gauge (AWG)
14
Voltage Compatibility (VAC)
120
Maximum Surge Amps
45000
Input Plug Type
NEMA 5-15P
Input Cord Details
SJT
Input Cord Length (ft.)
6
Right-Angle Plug
No
OUTPUT
Frequency Compatibility
60 Hz
Output (Watts)
1800
Output Receptacles
(6) 5-15R
Circuit Breaker (amps)
15
Overload Protection
Combo power switch and circuit breaker
Transformer Accommodation
(4) Yes
Outlet Orientation
1 single row of 6
Right-Angle Outlets
Yes
Outlet Safety Covers Detail
Includes 4 outlet safety covers
USER INTERFACE, ALERTS & CONTROLS
Diagnostic LED(s)
Yes
Switches
Lighted on/off power switch
Diagnostic LED Details
1 green "protected" LED confirms surge suppression is present
SURGE / NOISE SUPPRESSION
AC Suppression Joule Rating
900
AC Suppression Response Time
< 1 ns
Protection Modes
Includes full normal mode (H-N) and common mode (N-G/H-G) line surge suppression
EMI / RFI Filtering
Up to 20 dB
Automatic Shut-Off
Yes
DATALINE SURGE SUPPRESSION
Network (Ethernet) Protection
No
PHYSICAL
Material of Construction
Metal
Power Cord Color
Yellow
Housing Color
Yellow
Mounting Holes or Slots
Yes
Slot or Hole Mount Measurement (Center to Center)
155 mm
Outlets Measurement (Center to Center)
Distance between standard outlets = 30.40mm; Distance between transformer and standard outlets = 45mm
Receptacle Color
Black
Shipping Dimensions (hwd / in.)
7.30 x 13.70 x 5.00
Shipping Weight (lbs.)
1.70
Unit Dimensions (hwd / in.)
12.23 x 2.30 x 1.28
Unit Weight (lbs.)
1.46
STANDARDS & COMPLIANCE
Canada
cUL
Approvals
cULus, RoHS
UL1449 3rd Edition (AC Suppression)
UL1449 3rd Edition
WARRANTY
Product Warranty Period (Worldwide)
Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)
