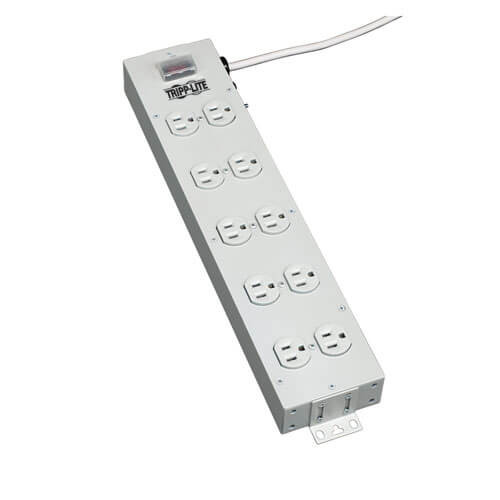

Tripp Lite's Power It! TLM1015NC power strip offers reliable, convenient and cost-effective power distribution for appliances, power tools, lighting and other electrical equipment. Includes 10 NEMA 5-15R outlets spaced to accommodate transformers, 15-ft. (4.57 m) AC power cord and keyhole slots on removable mounting brackets. Multi-outlet strip reduces cable clutter and enables the connection of multiple electrical devices to a single AC wall socket. Features heavy-duty metal case to stand up to the most demanding environments, illuminated power switch with transparent cover to prevent accidental shutoff and 15A integrated circuit breaker to prevent dangerous overloads.
INPUT/OUTPUT: Input: NEMA 5-15P/Output: 10 NEMA 5-15R
ELECTRICAL: 120V AC, 50/60Hz, 15A
FORMAT: Corded power distribution strip
Features
Multi-outlet power strip offers reliable, convenient and cost-effective power distribution for appliances, power tools, lighting and other electrical equipment
Includes 10 NEMA 5-15R outlets spaced to accommodate transformers
Illuminated on/off switch provides one-touch power control for connected equipment
Transparent switch cover snaps tight to prevent accidental shutoff
Convenient keyhole slots on removable brackets provide secure mounting options for a wide variety of surfaces and applications
15A power handling capacity with integrated circuit breaker
120V AC, 50/60Hz electrical compatibility
15-ft. (4.57 m) AC power cord
Heavy-duty metal case provides maximum safety and durability
UL certification
Package Includes
TLM1015NC power strip
Warranty information
Instruction manual
Specifications
OVERVIEW
UPC Code
037332136107
INPUT
Nominal Input Voltage(s) Supported
120V AC
Recommended Electrical Service
15A 120V
Input Cord Gauge Type
14 gauge; SJT
Voltage Compatibility (VAC)
120
Input Plug Type
NEMA 5-15P
Input Cord Length (ft.)
15
OUTPUT
Frequency Compatibility
50 / 60 Hz
Output (Watts)
1800
Output Receptacles
(10) 5-15R
Circuit Breaker (amps)
15
Overload Protection
15A circuit breaker
Transformer Accommodation
(5) Yes
Outlet Orientation
10 outlets arranged in 2 rows and spaced to accommodate transformers
USER INTERFACE, ALERTS & CONTROLS
Switches
Illuminated on/off switch controls power to all outlets
Locking Switch Cover
Transparent switch cover snaps tight to prevent accidental shutoff
PHYSICAL
Material of Construction
Metal
Color
Light Gray
Power Cord Color
Light Gray
Housing Color
Light Gray
Included Mounting Accessories
Keyhole slots on removable mounting brackets
Mounting Holes or Slots
Yes
Slot or Hole Mount Measurement (Center to Center)
Distance between end tabs = 462.30mm
Outlets Measurement (Center to Center)
Distance between horizontal outlets = 71.45mm; Distance between vertical outlets = 38.90mm
Receptacle Color
Light gray
Shipping Dimensions (hwd / in.)
2.60 x 9.10 x 20.20
Shipping Weight (lbs.)
5.10
Unit Dimensions (hwd / in.)
17.5 x 4 x 2.25
Unit Weight (lbs.)
4.6
Mounting Details
Includes flanges
STANDARDS & COMPLIANCE
Canada
cUL
Additional International Approvals
Complies with RoHS (Restriction of Hazardous Substances Directive)
