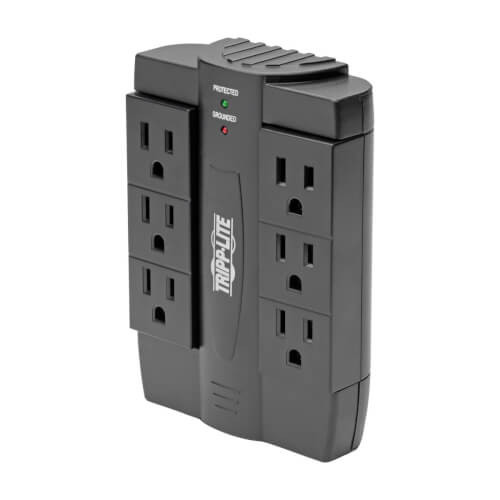

The SWIVEL6 offers reliable surge and line noise protection. Premium features include a compact, direct plug-in design for easy portability, 3 rotatable outlets and 3 stationary outlets for easier plug connection and removal and 1200 joules of surge absorption protection. Diagnostic LEDs alert you to potential wiring or protection faults before connected equipment is damaged. $20,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only).
Features
3 rotatable outlets and 3 stationary side facing outlets, allow for easier plug connection and removal
1200 joules surge suppression rating with EMI/RFI line noise filtering help components perform at their peak (sharper, crisper video; deeper, fuller audio and longer component life spans)
2 diagnostic LEDs alert user to protection and grounding status
High-impact plastic housing (black) stands up to the most demanding environments
Direct plug-in design converts two outlets into six by plugging into any wall outlet
$20,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)
Package Includes
SWIVEL6 Surge Suppressor
Instruction manual with warranty information
Specifications
OVERVIEW
UPC Code
037332138231
INPUT
Nominal Input Voltage(s) Supported
120V AC
Recommended Electrical Service
120V (110-125V)
Input Cord Length Details
Direct plug-in
Voltage Compatibility (VAC)
120
Input Plug Type
NEMA 5-15P
Input Cord Length (ft.)
0
Right-Angle Plug
No
OUTPUT
Frequency Compatibility
60 Hz
Output (Watts)
1875
Output Receptacles
(6) 5-15R
Circuit Breaker (amps)
15
Transformer Accommodation
(2) Yes
Outlet Orientation
Rotatable, Stationary
USER INTERFACE, ALERTS & CONTROLS
Diagnostic LED(s)
Yes
Diagnostic LED Details
Built-in LEDs confirm suppressor "protected" (green) and "grounded" (red) status
SURGE / NOISE SUPPRESSION
AC Suppression Joule Rating
1200
AC Suppression Response Time
< 1 ns
Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
UL1449 Let Through Rating
500, 500, 500
EMI / RFI Filtering
Up to 20 dB
DATALINE SURGE SUPPRESSION
Network (Ethernet) Protection
No
PHYSICAL
Material of Construction
Plastic
Power Cord Color
No
Housing Color
Black
Mounting Holes or Slots
No
Outlets Measurement (Center to Center)
29mm
Receptacle Color
Black
Shipping Dimensions (hwd / in.)
6.02 x 4.45 x 20.30
Shipping Weight (lbs.)
0.74
Unit Dimensions (hwd / in.)
6.25 x 4 x 2.25
Unit Weight (lbs.)
0.6
FEATURES & SPECIFICATIONS
Rotatable Outlets
Yes
STANDARDS & COMPLIANCE
Canada
Approved for Canada by ETL
Approvals
RoHS
UL1449 3rd Edition (AC Suppression)
UL498A:2008 2ND ED WITH REVISION THROUGH JULY 10, 2016, CSA-C22.2 No.42:2010 7TH EDITION, UL1449:2014 4TH EDITION WITH REVISION THROUGH JULY 21, 2017, CSA-C22.2 #269.3:2017 2ND EDITION
NOM (Mexico)
Y
UL1363 (Power Tap)
UL1363
UL497A (Communications)
UL497A
FCC Part 68 (Communications)
FCC Part 68
Industry Canada (Communications)
Industry Canada
WARRANTY
Product Warranty Period (Worldwide)
Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)
