Product Overview
Features
Bypass an SUT20K UPS to Perform Maintenance

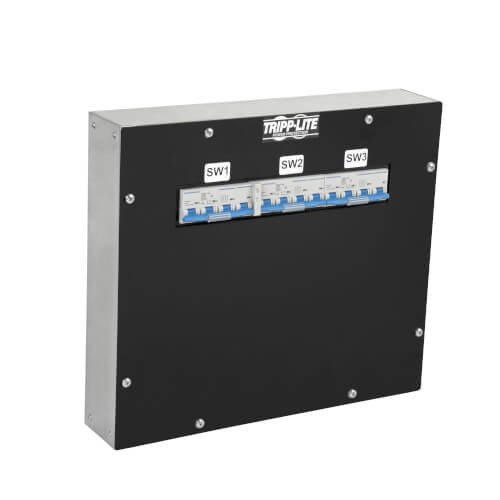

For use with Tripp Lite’s SUT20K 3-phase UPS system, the SUT20KMBP maintenance bypass panel (MBP) maintains total continuity of power to connected load circuits when bypass of the UPS is required for regular service and maintenance. This UPS maintenance bypass panel has three 4-pole circuit breakers for Input, Bypass and Output. The breakers have removable handles to allow the panel’s trim cover to be removed for internal access. The short circuit rating is 10 kAIC. Maximum current capacity is 80A.
Convenient Wall-Mount Installation
Made of galvanized steel, the service bypass panel has rear mounting holes for installation on a smooth and solid wall (mounting hardware not included).
One-Year Warranty
The SUT20KMBP is backed by a one-year limited warranty, ensuring reliability and performance.
Package Includes
- SUT20KMBP UPS Maintenance Bypass Panel for SUT20K
- Installation and Operation Manual
Specifications
OVERVIEW
| UPC Code | 037332222343 |
| Accessory Type | Bypass Panel |
| Accessory Class | UPS Accessories |
INPUT
| Nominal Input Voltage Description | 208Y/120 VAC 3 phase, 4 wire (3P+N+E) |
OUTPUT
| Output Capacity Details | 80A maximum |
PHYSICAL
| Form Factors Supported | Wallmount |
| Shipping Dimensions (hwd / in.) | 10.00 x 22.00 x 25.00 |
| Unit Dimensions (hwd / in.) | 17.5 x 20 x 4.6 |
| Unit Weight (lbs.) | 28 |
WARRANTY
| Product Warranty Period (Worldwide) | 1-year limited warranty |
