Product Overview
Overview

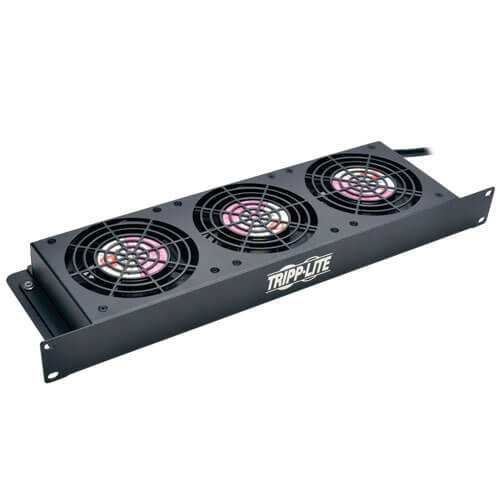

The SRFAN1U SmartRack 1U Fan Tray is an ideal accessory for increasing ventilation within your rack enclosures and server cabinets. Better airflow keeps your valuable rack components cool, helps boost system performance, and avoids costly equipment failures that lead to downtime, damage and data loss.
The SRFAN1U requires only one rack space and installs easily in an enclosure or server cabinet. It includes three powerful four-inch 120V fans that should be mounted low in the rack in order to push cool air toward the top. The high-performance fans circulate air at 210 cubic feet per minute (CFM). The 1U tray is constructed from heavy-duty cold-rolled steel that is built to last. The 6-ft. (1.83 m) AC power cord plugs into any NEMA 5-15R outlet.
Features
- Ideal for keeping rack components cool, boosting system performance, and avoiding costly equipment failures
- 3 powerful 4 in. 120V fans push air toward top of the rack
- Circulates air at 210 cubic feet per minute (CFM)
Heavy-Duty Construction
- Built using heavy-duty cold-rolled steel designed to last a long time
- 6-ft. (1.83 m) AC power cord plugs into any NEMA 5-15R outlet
- Compatible with all standard 19 in. rack enclosures and server cabinets
- Fully assembled and ready to mount
Package Includes
- SRFAN1U SmartRack 1U Fan Tray
Specifications
OVERVIEW
| UPC Code | 037332188465 |
| Accessory Type | Cooling Accessories |
INPUT
| Nominal Input Voltage(s) Supported | 120V AC |
| Nominal Input Voltage Description | 120V 50/60 Hz |
| Input Plug Features | NEMA 5-15P |
| Input Cord Length (ft.) | 6 |
COOLING
| Cooling Type | Passive |
PHYSICAL
| Shipping Dimensions (hwd / in.) | 2.56 x 22.06 x 7.50 |
| Shipping Weight (lbs.) | 7.25 |
| Unit Dimensions (hwd / in.) | 1.73 x 18.90 x 5.77 |
| Unit Weight (lbs.) | 6.6 |
FEATURES & SPECIFICATIONS
| Sound Level (Noise) | <= 45 dB |
WARRANTY
| Product Warranty Period (Worldwide) | 2-year limited warranty |
