Product Overview
Overview

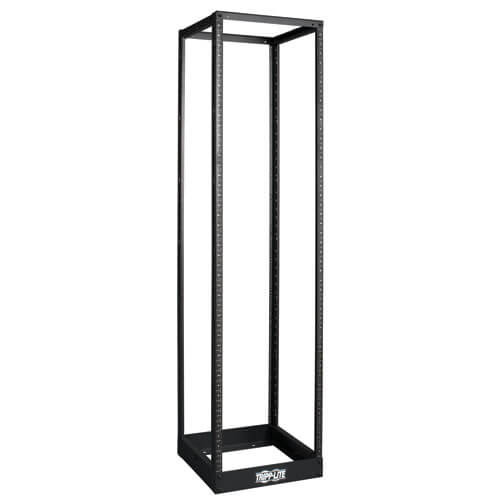

Tripp Lite's 45U 4-Post Open Frame Rack helps IT managers organize their equipment array and provides fast, easy access to installed IT equipment. The SR4POST is a simple solution for housing IT equipment in secure environments and other areas that don't require a lockable rack solution. This 45U rack features heavy-duty cold-rolled steel construction with a black powder-coated finish for durability. It supports stationary loads up to 1000 lbs (453.6 kgs) The SR4POST comes with all the hardware required for assembly and has a self-squaring design with bolt-down provisions. For high-density applications, multiple units can be bolted together side by side.
The open design of the SR4POST provides unobstructed airflow and easy access to equipment and cabling. It has numbered, square-hole mounting positions for easy installation of standard 19-inch rack equipment. The SR4POST supports equipment depths from 22 to 36 inches. This rack also accommodates toolless button-hole mounting for vertical PDUs and cable managers.
Features
- Supports 1000 lbs (453.6 kgs) of rackmount equipment
- Adjustable mounting depth (22 to 36 inches)
- Textured powder coat finish
- Heavy-duty cold-rolled steel construction
- Numbered mounting positions
- Bolt down provisions
- Self squaring design
- Includes mounting hardware of 50 pieces of M6 cage nuts, 50 pieces of M6 screws, and washers
- Black finish
- Easy assembly
Package Includes
- SR4POST
- Installation hardware
- 50x pieces of M6 cage nuts, screws, and washers for equipment mounting
- 32x Cable management hooks
- Owner's manual with warranty information
Specifications
OVERVIEW
| UPC Code | 037332127570 |
| Device Compatibility | Patch Panel; Network Switch; UPS; Server |
| Rack Type | Open-Frame |
PHYSICAL
| Color | Black |
| Maximum Device Depth (in.) | 36 |
| Minimum Device Depth (in.) | 22 |
| Rack Height | 45U |
| Shipping Dimensions (hwd / in.) | 4.53 x 6.50 x 87.99 |
| Shipping Weight (lbs.) | 60.00 |
| Unit Dimensions (hwd / in.) | 84.3 x 20.2 x 22-36 |
| Unit Weight (lbs.) | 54 |
| Weight Capacity - Stationary (lbs.) | 1000 |
| Rack Depth | Standard |
| Number of Vertical Mounting Rails | 4 |
FEATURES & SPECIFICATIONS
| Grounding Lug | Includes screws, washers, and bolts to secure user-supplied grounding wire to front or back frames |
STANDARDS & COMPLIANCE
| Approvals | EIA-310-D, IEC 60297-3-100, RoHS |
WARRANTY
| Product Warranty Period (Worldwide) | 5-year limited warranty |
