Product Overview
Overview

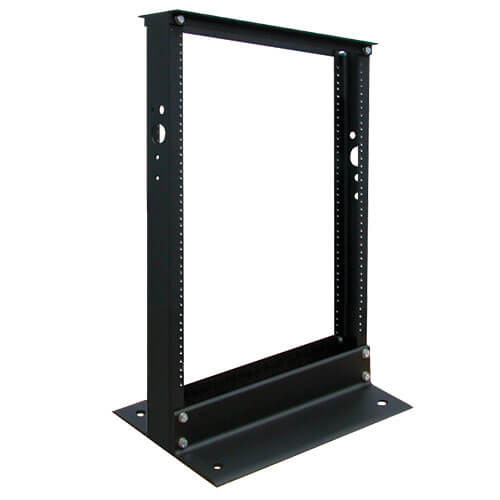

Tripp Lite's SR2POST13 2-Post SmartRack Open Frame Rack is an economical way to accommodate 13U of rack space for 19-inch rackmount applications in limited spaces. Its heavy-duty, aluminum construction can safely support 800 lbs (362.9 kgs) of rackmount equipment. The black, textured powder coat finish makes it resistant to scratching while giving it a "classic," attractive appearance. The SR2POST13 is easy to install due to a self-squaring design combined with 12-24 threaded and numbered mounting positions along with bolt down provisions. Only standard hand tools are required for installation (9/16" wrench and 9/16" socket/ratchet). Multiple units can be bolted together side by side for easy expansion or customization as needed. The SR2POST13 2-Post SmartRack Open Frame Rack has been approved by EIA-310-D, IEC 60297-3-100, and RoHS, and is backed by a 5-year warranty.
Features
- Supports 800 lbs (362.9 kgs) of rackmount equipment
- Textured powder coat finish
- Heavy Duty Aluminum construction
- 12-24 threaded and numbered mounting positions
- Bolt down provisions
- Self squaring design
- Black finish
- Easy assembly
Package Includes
- SR2POST13
- 28 pieces each of 12-24 screws and washers for equipment mounting
- Installation hardware
- Cable management hooks
- Warranty Information
- Owner's Manual
Specifications
OVERVIEW
| UPC Code | 037332183644 |
| Device Compatibility | Patch Panel; Network Switch; UPS; Server |
| Rack Type | Open-Frame |
PHYSICAL
| Color | Black |
| EIA Mounting Rails | 12-24 threaded and numbered vertical mounting rails |
| Maximum Device Depth (in.) | 48 |
| Rack Height | 13U |
| Shipping Dimensions (hwd / in.) | 4.53 x 6.50 x 30.71 |
| Shipping Weight (lbs.) | 24.00 |
| Unit Dimensions (hwd / in.) | 28 x 20.3 x 4.75 |
| Unit Weight (lbs.) | 20 |
| Weight Capacity - Stationary (lbs.) | 800 |
| Rack Depth | Extra Deep |
| Number of Vertical Mounting Rails | 2 |
STANDARDS & COMPLIANCE
| Approvals | EIA-310-D, IEC 60297-3-100, RoHS |
WARRANTY
| Product Warranty Period (Worldwide) | 5-year limited warranty |
