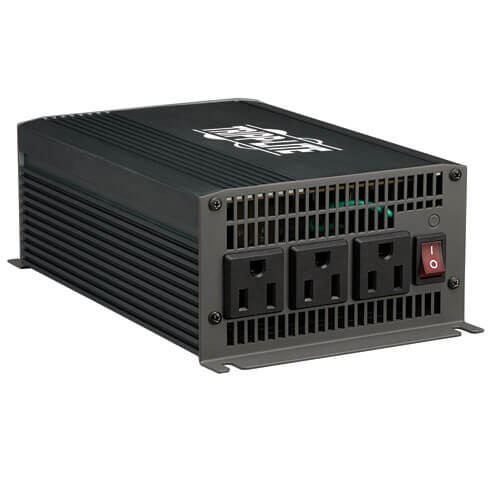

Utilize your vehicle's battery to efficiently power appliances, small electronics and office equipment on the road. Continuously supplies up to 700W of 120V AC power to 3 AC outlets from any 12V battery. Featuring an ultra-compact, lightweight design with metal housing, the PV700HF is the most rugged inverter available.
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 125a should be positioned no more than 18" from the PV700HF's battery in the positive line.
Features
Provides 120V AC power for a variety of mobile applications
700W continuous output power; 1400W peak output power (instantaneous)
3 AC outlets
Ultra-compact extruded aluminum housing stands up to the toughest environments
Cooling fan lengthens inverter service life & maintains cool operation
Low battery alarm/shutdown detects low battery voltage and shuts down inverter
Overload alarm/shutdown detects wattage overload on inverter outlets and shuts down inverter as a protective measure
DC input terminals provide a solid connection to battery with user-supplied cables
Lighted on/off switch shows inverter operations in cramped or dark environments
Grooved surface for more efficient cooling
Package Includes
PV700HF Ultra-Compact DC-to-AC Inverter
Instruction manual with warranty information
Specifications
OVERVIEW
UPC Code
037332137999
INPUT
Maximum Input Amps / Watts
Full continuous load - 80A at 12V DC, No load - 0.95A at 12V DC, Shutdown - 150 micro amps
Recommended Electrical Service
Requires 12V DC input source capable of delivering 80A for the required duration (when used at full capacity). For automotive applications, hardwire installation with 125A battery system fusing is recommended
Input Connection Type
Set of 2 DC bolt-down wiring terminals
Input Cord Length Details
User supplies cabling. Minimum gauges for full load operation: 6 gauge or larger (see instruction manual)
Voltage Compatibility (VDC)
12
OUTPUT
Frequency Compatibility
60 Hz
Pure Sine Wave Output
No
Output (Watts)
700
Nominal Output Voltage(s) Supported
120V
Output Receptacles
(3) 5-15R
Continuous Output Capacity (Watts)
700
Peak Output Capacity (Watts)
1400
Output Voltage Regulation
Maintains PWM sine wave output voltage of 115 V AC (+/- 8 V AC)
Output Frequency Regulation
60 Hz (+/- 3 Hz)
BATTERY
DC System Voltage (VDC)
12
USER INTERFACE, ALERTS & CONTROLS
Switches
Lighted on/off power switch
Audible Alarm
Dual-function alarm indicates overload conditions or low DC input voltage of 10.5V or less
PHYSICAL
Material of Construction
Aluminum, Steel
Cooling Method
Fan
Shipping Dimensions (hwd / in.)
3.70 x 10.10 x 6.30
Shipping Weight (lbs.)
3.50
Unit Dimensions (hwd / in.)
2.75 x 8.17 x 5
Unit Weight (lbs.)
2.8
ENVIRONMENTAL
Relative Humidity
0-95% non-condensing
FEATURES & SPECIFICATIONS
TVSS Grounding
Main grounding screw for connecting inverter to earth, vehicle, or boat grounding systems
