Product Overview
Features
10-ft. (3.05 m) Cables Connect Your Computer and 2 DisplayPort Monitors to a Tripp Lite NIAP KVM

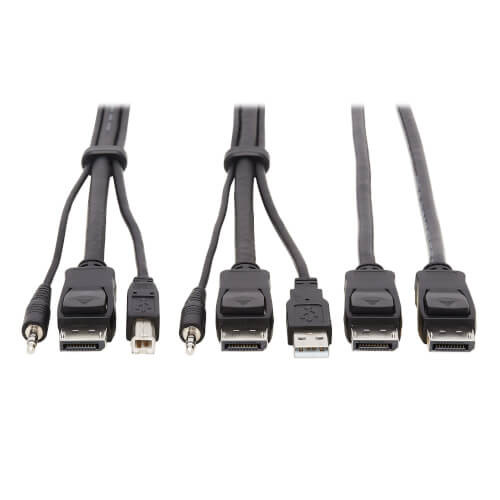

This DisplayPort cable kit includes two 10-ft. (3.05 m) cables for connecting a computer with two monitors to a KVM switch. The P783-010 features DisplayPort, USB A/B and 3.5 mm audio connectors on both ends for connecting your computer to a KVM switch. The P580-010 is a DisplayPort cable with male connectors on each end.
Specifically Designed for Select Tripp Lite KVMs to Save You Time and Money
Recommended for the Tripp Lite B002-DP2A4 NIAP KVM, the cables support DisplayPort video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with true 4:4:4 chroma subsampling. They are compatible with HDCP 2.2 and DisplayPort 1.2 standards. The P783-010 also supports USB 2.0 data transfer speeds up to 480 Mbps. By combining several different cables into one convenient kit, you cut down on unnecessary clutter and save money.
System Requirements
- Tripp Lite B002-DP2A4 NIAP KVM or other compatible KVM switch
Package Includes
- P783-010 DisplayPort KVM cable kit, 3 in 1 (M/M), 10 ft.
- P580-010 DisplayPort monitor cable (M/M), 10 ft.
Specifications
OVERVIEW
| UPC Code | 037332241641 |
| Accessory Type | Cable Kit |
| Technology | DisplayPort |
| Accessory Class | KVM Switch Accessories |
VIDEO
| Max Supported Video Resolution | 3840 x 2160 @ 60Hz |
PHYSICAL
| Color | Black |
| Cable Jacket Color | Black |
| Cable Length (ft.) | 10 |
| Cable Length (in.) | 120 |
| Shipping Dimensions (hwd / in.) | 12.00 x 10.00 x 0.50 |
| Shipping Weight (lbs.) | 1.22 |
ENVIRONMENTAL
| Operating Temperature Range | 14 ~ 122F (-10 ~ 50C) |
| Storage Temperature Range | 5 ~ 140F (-15 ~ 60C) |
| Relative Humidity | 0 ~ 90% RH, Non-Condensing |
CONNECTIONS
| Side A - Connector 1 | 3.5MM (MALE); DISPLAYPORT (MALE); USB A (MALE) |
| Side A - Connector 2 | DISPLAYPORT (MALE) |
| Side B - Connector 1 | 3.5MM (MALE); DISPLAYPORT (MALE); USB B (FEMALE) |
| Side B - Connector 2 | DISPLAYPORT (MALE) |
| Contact Plating | Gold |
FEATURES & SPECIFICATIONS
| Displayport Specification | 1.2 |
| HDCP Specification | 2.2 |
| USB Specification | USB 2.0 (up to 480 Mbps) |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
