Description
Send UHD Mini DisplayPort 1.2a Signals to a 4K HDMI Display
- Connects mDP or Thunderbolt PC, Mac or tablet to a 4K-enabled HDMI monitor, projector or HDTV
- Recommended for displaying video on a large monitor or digital sign
- mDP and high-grip HDMI male connectors
- No separate power adapter required
Vibrant Video Quality
- Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
- Supports HDCP 2.2, audio and EDID
- Active adapter compatible with Single-Mode and Dual-Mode (DP++) DisplayPort output
- Recommended for graphics cards, such as AMD Eyefinity, that don’t output DP++ signals
Superior Materials for Superior Performance
- Gold-plated HDMI connector and contacts for maximum conductivity and minimum data loss
- Special high-grip HDMI plug prevents accidental disconnections
- Integral strain relief provides cable and connectors with flexibility and reduces stress

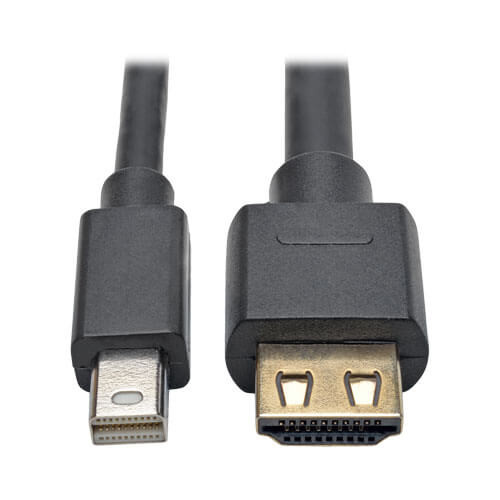

- P586-003-HD-V2A Mini DisplayPort 1.2a to HDMI Active Adapter Cable (M/M), 3 ft.
OVERVIEW
| UPC Code | 037332200631 |
| Product Type | Active Cable |
| Technology | HDMI; DisplayPort |
VIDEO
| Max Supported Video Resolution | 4K @ 60 Hz (3840 x 2160) |
| HDR Support | No |
| Chroma Sub Sampling | 4:4:4 |
PHYSICAL
| Color | Black |
| Material of Construction | ABS, PVC |
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter (OD) | mDP: 5.0mm, HDMI: 7.3mm |
| Wire Gauge (AWG) | mDP: 32, HDMI: 30 |
| Cable Length (ft.) | 3 |
| Cable Length (in.) | 36 |
| Shipping Dimensions (hwd / in.) | 0.50 x 7.00 x 9.00 |
| Shipping Weight (lbs.) | 0.10 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 104 °F (0 to 40 °C) |
| Storage Temperature Range | -4 to 140 °F (-20 to 60 °C) |
| Operating Humidity Range | 10 to 90%, Non-Condensing |
| Storage Humidity Range | 10 to 90%, Non-Condensing |
CONNECTIONS
| Side A - Connector 1 | MINI DISPLAYPORT (MALE) |
| Side B - Connector 1 | HDMI (MALE) |
| Connector Plating | Gold; Nickel |
| Contact Plating | Gold |
FEATURES & SPECIFICATIONS
| Displayport Specification | 1.2a |
| HDCP Specification | 2.2 |
STANDARDS & COMPLIANCE
| Certifications | CE, FCC, RoHS, REACH |
WARRANTY
| Product Warranty Period (U.S. & Canada) | 3-year limited warranty |
