Description
Send High-Quality DisplayPort v1.2 Video Signals to a DVI Display
- Connects DisplayPort computer to DVI-enabled monitor, projector or TV
- Ideal for displaying video on large monitor or digital sign
- DVI-D and DisplayPort male connectors
- No separate adapter required
Vibrant, Superior Video Quality
- Supports computer video resolutions up to 1920 x 1200
- Supports HD video resolutions up to 1920 x 1080 (1080p)
- Converts Single-Mode and Dual-Mode (DP++) DisplayPort output
- Perfect for use with graphics cards, such as AMD Eyefinity, that do not output DP++ signals
Superior Materials for Superior Performance
- Double shielding with foil and braid for maximum EMI/RFI protection
- Gold-plated connectors and contacts for excellent conductivity
- Latching Displayport plug for secure connection
- Integral strain relief for long life

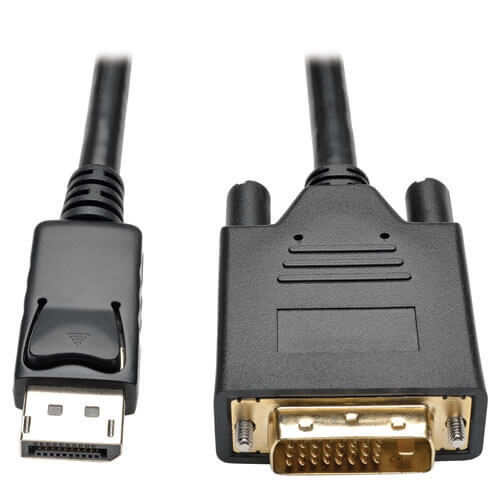

- P581-006-V2 DisplayPort 1.2 to DVI Active Adapter Cable, 6 ft.
OVERVIEW
| UPC Code | 037332191977 |
| Product Type | Active |
| Technology | DVI; DisplayPort |
VIDEO
| Max Supported Video Resolution | 1920 x 1200 @60Hz |
| Max Supported Color Depth | 24-bit True Color |
PHYSICAL
| Color | Black |
| Cable Jacket Color | Black |
| Cable Length (ft.) | 6 |
| Shipping Dimensions (hwd / in.) | 9.00 x 7.00 x 0.50 |
| Shipping Weight (lbs.) | 0.40 |
ENVIRONMENTAL
| Operating Temperature Range | 32~113°F (0~45°C) |
| Storage Temperature Range | 14~158°F (-10~70°C) |
| Operating Humidity Range | 10%~85% RH, Non-Condensing |
| Storage Humidity Range | 5%~90% RH, Non-Condensing |
CONNECTIONS
| Side A - Connector 1 | DISPLAYPORT (MALE) |
| Side B - Connector 1 | DVI-D DUAL-LINK (MALE) (WIRED TO DVI-D SINGLE-LINK) |
| Latching Connector | Yes |
FEATURES & SPECIFICATIONS
| Displayport Specification | 1.2 |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
