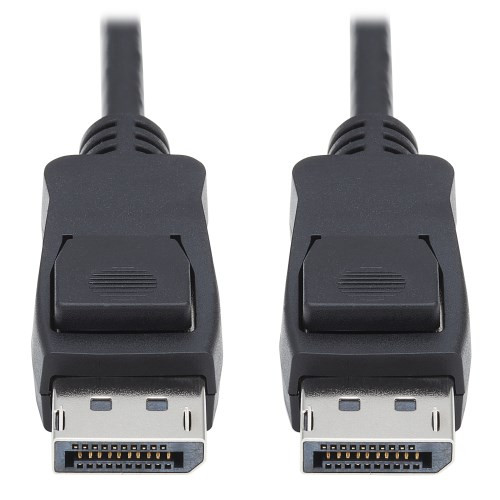

Tripp-Lite P580-003-V4 3Ft DisplayPort 8K Cable

MSRP: $15.23
$14.99
(You save $0.24 )
SKU:
P580-003-V4
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

DisplayPort 1.4 Cable Gets Your Gaming, Home Theater or Digital Signage Setup 8K-Ready
This high-speed DisplayPort cable (M/M) securely connects source and display devices compatible with DisplayPort 1.4 audio/video signals. Backward compatible with all your existing DisplayPort devices, including Blu-ray players, game consoles and 4K televisions, the P580-003-V4 is ideal for future-proofing your high-definition or UHD A/V application in anticipation of an 8K upgrade. It flawlessly handles data transfer speeds up to 32 Gbps.
Enjoy the Clarity of 4K/8K Video with 4:2:0 Color
The P580-003-V4 supports 8K UHD video resolutions up to 7680 x 4320 at 30 Hz. It’s compatible with DisplayPort 1.4 standards for carrying HDR signals, which provide a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance and 4:2:0 chroma subsampling allow you to stream 4K Amazon and Netflix content with no complications.
Latching Connectors Help Prevent Accidental Disconnection and Expensive Downtime
Having a cable come loose accidentally can mean costly and time-consuming signal loss. The latching DisplayPort connectors help you avoid such danger, protecting your audio/video transmission by maintaining a secure link without failure. The latching cable is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the cord always stays connected.

System Requirements

  • Both source and display devices must be compatible with 8K standards to watch 8K video

Package Includes

  • P580-003-V4 DisplayPort 1.4 Cable with Latching Connectors, 8K, M/M, Black, 3 ft.
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332255112
Product Type Passive
Technology DisplayPort
VIDEO
Max Supported Video Resolution 7680 X 4320 30HZ (8K)
Max Supported Color Depth 36-bit Deep Color
HDR Support Yes
3D Video Supported Yes
Chroma Sub Sampling 4:2:0
INPUT
Bus Powered   Yes
PHYSICAL
Color Black
Material of Construction PVC, ABS
Cable Jacket Color Black
Cable Jacket Material PVC
Cable Jacket Rating VW-1
Cable Outer Diameter (OD) 4.8MM
Wire Gauge (AWG) 32
Cable Length (ft.) 3
Cable Length (in.) 36
Ferrite Core   No
Shipping Dimensions (hwd / in.) 0.25 x 7.00 x 9.25
ENVIRONMENTAL
Operating Temperature Range 32 TO 113 F (0 TO 45 C)
Storage Temperature Range 14 TO 158 F (-10 TO 70 C)
Operating Humidity Range 10% TO 85% RH, NON-CONDENSING
Storage Humidity Range 5% TO 90% RH, NON-CONDENSING
COMMUNICATIONS
EDID Compatible   Yes
Consumer Electronics Control (CEC) Supported No
CONNECTIONS
Side A - Connector 1 DISPLAYPORT (MALE)
Side B - Connector 1 DISPLAYPORT (MALE)
Latching Connector Yes
Connector Plating Nickel
Contact Plating   Gold
FEATURES & SPECIFICATIONS
Displayport Specification 1.4
HDCP Specification 2.2
Ohms No
EMI/RFI Line Noise Protection No
Integral Strain Relief No
Impedance-Matched Twisted-Pair Construction No
DIN Mountable No
Integrated/Removable Cable No
Scaler Function No
STANDARDS & COMPLIANCE
Certifications RoHS, REACH
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
