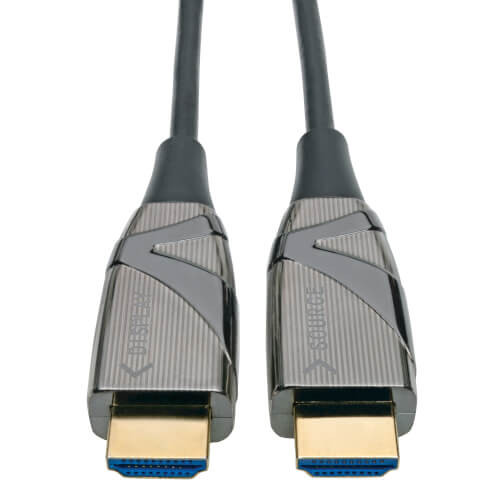

Tripp-Lite P568-40M-FBR 40M High-Speed HDMI Cable

MSRP: $344.76
$286.99
(You save $57.77 )
SKU:
P568-40M-FBR
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

4K HDMI Cable Connects Home Theater, Gaming & Digital Signage Components
This 4K HDMI cable securely connects HDMI-enabled laptops, tablets, PCs, Blu-ray players, game consoles or satellite/cable TV boxes to HDTVs, HD monitors, projectors or home theater receivers. Because the cable uses optical fiber, it can transmit HDMI signals longer distances with no latency or loss. It also eliminates any EMI/RFI line noise that can interfere with your audio/video signal and disrupt the performance of your connected equipment.

Enjoy the Clarity of 4K HDMI Video with Multi-Channel Audio, HDR and 4:4:4 Color
This 4K HDMI cable is rated up to 18 Gbps and supports Ultra HD video resolutions up to 4K at 60 Hz (3840 x 2160) for crystal-clear picture and sound, as specified in HDMI 2.0. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor, as well as 3D, 48-bit Deep Color, DTS-HD Master Audio and Dolby True HD.

Advanced Fiber Cable Is Easier to Install than Copper
Because the fiber cable is slimmer and more flexible than standard copper HDMI cables, the P568-40M-FBR is easier to install around corners and in hard-to-reach spaces behind equipment. It draws power from the connected device, so no external power supply is needed to transmit the HDMI signal across the longer distances unique to fiber optic cabling. Note: The cable must be installed in the correct direction to function properly, so check the Source and Display labels on the connectors before installation.

Package Includes

  • P568-40M-FBR High-Speed HDMI Fiber Active Optical Cable, M/M, Black, 40 m (131 ft.)
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332236852
Product Type Active
Technology HDMI
VIDEO
Video Input HDMI (MALE)
Video Output HDMI (MALE)
Max Supported Video Resolution 3840x2160 (4K @ 60Hz)
Max 1280 x 720 (720p) Range (ft) 131
Max 1920 x 1080 (1080p) Range (ft) 131
Max 1920 x 1200 Range (ft) 131
Max 2560 x 1600 Range (ft) 131
Max 3840 x 2160 (4K@30Hz) Range (ft) 131
Max 3840 x 2160 (4K@60Hz) Range (ft) 131
Max Supported Color Depth 48-bit
HDR Support Yes
3D Video Supported Yes
Chroma Sub Sampling 4:4:4
Maximum Signal Range (ft) 131
POWER
Power Over Cable (PoC) Support No
PHYSICAL
Color Black
Cable Length (ft.) 131
Number of Displays 1
Form Factor/Mounting Options Cable
Shipping Dimensions (hwd / in.) 3.40 x 6.50 x 6.50
Shipping Weight (lbs.) 3.20
ENVIRONMENTAL
Operating Temperature Range 32 to 113°F (0 to 45°C)
Storage Temperature Range 14 to 158°F (-10 to 70°C)
Operating Humidity Range 10% to 85% RH, Non-Condensing
Storage Humidity Range 5% to 90% RH, Non-Condensing
COMMUNICATIONS
EDID Compatible   No
IR Remote Extension Support No
RS-232 Serial Extension Support No
Consumer Electronics Control (CEC) Supported No
USB Extension Support No
CONNECTIONS
Side A - Connector 1 HDMI (MALE)
Side B - Connector 1 HDMI (MALE)
FEATURES & SPECIFICATIONS
Driver Required No
10/100 Ethernet Extension Support No
Built-In Equalizer No
STANDARDS & COMPLIANCE
Certifications Tested to CE, FCC, RoHS, REACH
WARRANTY
Product Warranty Period (Worldwide) 3-year limited warranty
