Product Overview
Features

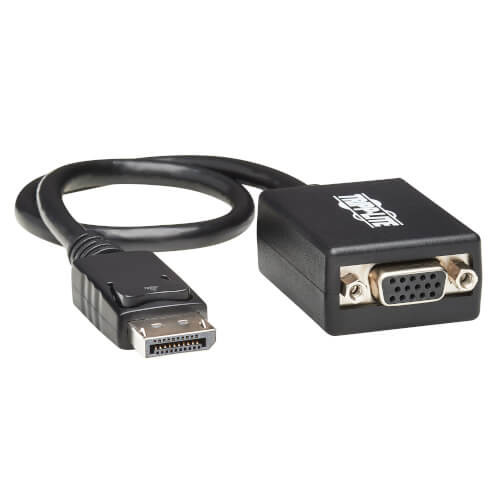

DP to VGA Converter Connects a DisplayPort Source to Your Existing VGA Display
This DisplayPort to VGA active adapter connects a VGA monitor, projector or television to the DisplayPort output on your PC, Chromebook or other compatible computer or tablet. It features a male DP connector and a female HD15 connector, allowing you to continue using your existing VGA display and VGA cable to transmit video signals without the expense of a new DP display.
Transmits Outstanding 1080p Video for High-Definition Presentations
Ideal for classrooms, lecture halls and anywhere else you may give a presentation, this DisplayPort to VGA converter supports computer video resolutions up to 1920 x 1200, including 1080p, and high-definition resolutions up to 1080p. The active adapter converts both Single-Mode and Dual-Mode (DP++) DisplayPort output. It’s recommended for use with graphics cards, such as AMD Eyefinity, that do not output DP++ signals.
Ready to Use Right Out of the Package
The plug-and-play adapter requires no software, drivers or external power, works with both Windows and Mac operating systems, and is compatible with laptops, tablets and other devices equipped with a female DisplayPort. With its small size, the P134-001-VGA is recommended for stowing in your laptop bag and carrying to school, the office or the latest trade show.
3-Year Warranty
The P134-001-VGA is backed by a 3-year warranty, ensuring reliability and performance.
System Requirements
- Source device with DisplayPort output
- Display device with VGA input
- Not for use with MST hubs. For compatibility with MST hubs, use a DisplayPort 1.2-compliant adapter, such as P134-06N-VGA-V2.
Package Includes
- P134-001-VGA DisplayPort to VGA Active Adapter – M/F, 1920 x 1200 (1080p), Black, 1 ft.
Specifications
OVERVIEW
| UPC Code | 037332212870 |
| Technology | VGA/SVGA; DisplayPort |
PHYSICAL
| Color | Black |
| Cable Length (ft.) | 1 |
| Cable Length (in.) | 12 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
| Operating Humidity Range | 10% TO 85% RH, Non-Condensing |
| Storage Humidity Range | 5% TO 90% RH, Non-Condensing |
CONNECTIONS
| Side A - Connector 1 | DISPLAYPORT (MALE) |
| Side B - Connector 1 | HD15 (FEMALE) |
STANDARDS & COMPLIANCE
| Certifications | Tested to CE, FCC, RoHS |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
