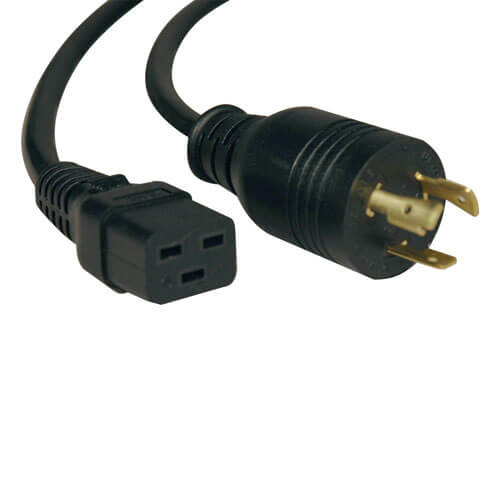

Tripp-Lite P045-010 10Ft Heavy Duty Power Cord

$42.99
SKU:
P045-010
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

Heavy-Duty Extension Cable Connects Devices That Require a Heavy-Gauge Connection
This heavy-duty extension cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. This C19 to L5-20P cord transforms a non-locking plug into a locking plug and can be used to connect a high-output device to a wall outlet or a PDU or UPS with L5-20R outlets. It is also a recommended replacement or upgrade of a standard power cord provided by the device's manufacturer. The 10-ft. (3.05 m) length allows you great flexibility in placing equipment with respect to the power outlet.
Locking L5-20P Connector Helps Prevent Accidental Disconnection and Expensive Downtime
Having a cable come loose accidentally can mean the loss of power and costly downtime. The locking connector helps you avoid such danger, protecting critical equipment by maintaining a secure link without failure. The locking cable is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the power cord always stays connected.

Package Includes

  • P045-010 C19 to L5-20P Heavy-Duty Extension Cord, 10-ft. (3.05 m), Black
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332140937
Device Compatibility Server; UPS; PDU
Country/Region North America
INPUT
Maximum Input Amps 20
Voltage Compatibility (VAC) 125
PHYSICAL
Plug Color Black
Cable Jacket Color Black
Cable Jacket Material PVC
Cable Jacket Rating VW-1
Power Cord Jacket Type SJT
Cable Outer Diameter (OD) 11mm
Number of Conductors 3
Wire Gauge (AWG) 12
Cable Length (ft.) 10
Shipping Dimensions (hwd / in.) 12.80 x 8.90 x 0.50
Shipping Weight (lbs.) 1.10
ENVIRONMENTAL
Operating Temperature Range -4 F TO 140 F (-20 C TO 60 C)
Storage Temperature Range -4 F TO 140 F (-20 C TO 60 C)
Operating Humidity Range 10 TO 65% RH
Storage Humidity Range 10 TO 65% RH
CONNECTIONS
Side A - Connector 1 NEMA L5-20P
Side B - Connector 1 IEC-320-C19
FEATURES & SPECIFICATIONS
Locking Plug No
Angled Plug No
STANDARDS & COMPLIANCE
Certifications UL/cUL
Approvals UL/CSA
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
