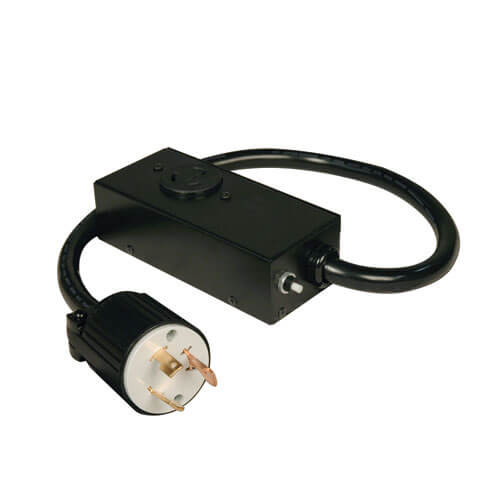

Tripp-Lite P043-002 2Ft Heavy Duty Power Cord

$133.99
SKU:
P043-002
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

Heavy-Duty Extension Cable Connects Devices That Require a Heavy-Gauge Connection
This heavy-duty extension cord with breaker features 10 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. It comes with a built-in metal 20-amp breaker box, which allows you to transform a NEMA L5-30R wall outlet into a NEMA L5-20R outlet. It is also a recommended replacement or upgrade of a standard power cord provided by the device's manufacturer. The 2-ft. (0.61 m) length helps reduce cable clutter and minimize the risk of tripping.
Locking Connectors Help Prevent Accidental Disconnection and Expensive Downtime
Having a cable come loose accidentally can mean the loss of power and costly downtime. Locking connectors on each end help you avoid such danger, protecting critical equipment by maintaining a secure link without failure. The locking cable is also invaluable when moving equipment in a rack or removing equipment from tight areas, ensuring the power cord always stays connected.

Package Includes

  • P043-002 L5-30P to L5-20R Extension Cord with Breaker, 2-ft. (0.61 m), Black
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332142306
Device Compatibility UPS; PDU
Country/Region North America
INPUT
Maximum Input Amps 20
Voltage Compatibility (VAC) 120
PHYSICAL
Plug Color Black
Cable Jacket Color Black
Cable Jacket Material PVC
Cable Jacket Rating VW-1
Power Cord Jacket Type SJT
Cable Outer Diameter (OD) 14.6mm
Number of Conductors 3
Wire Gauge (AWG) 10
Cable Length (ft.) 2
Shipping Dimensions (hwd / in.) 18.90 x 11.80 x 0.50
Shipping Weight (lbs.) 1.10
ENVIRONMENTAL
Operating Temperature Range 14 F TO 140 F (-10 C TO 60 C)
Storage Temperature Range 14 F TO 140 F (-10 C TO 60 C)
Operating Humidity Range 35% to 85% RH, Non-Condensing
Storage Humidity Range 35% to 85% RH, Non-Condensing
CONNECTIONS
Side A - Connector 1 NEMA L5-30P
Side B - Connector 1 NEMA L5-20R
FEATURES & SPECIFICATIONS
Locking Plug Yes
Angled Plug No
STANDARDS & COMPLIANCE
Certifications UL/cUL
Approvals UL/CSA
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
