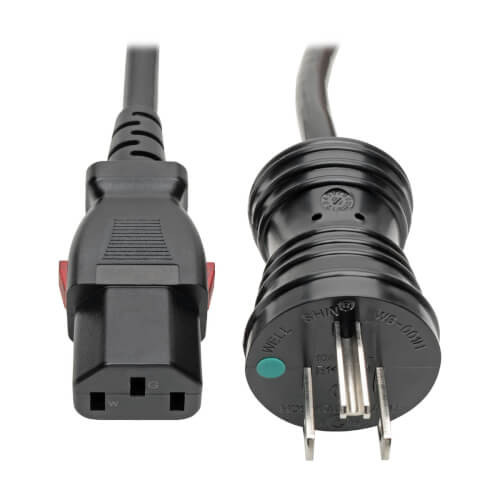

Tripp-Lite P006-025-HG15 Hospital Medical Power Cord

$30.99
SKU:
P006-025-HG15
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

Hospital-Grade Power Cable is a Safe Solution for Medical Facilities
This hospital-grade IEC power cord features 14 AWG wire suitable for high power connections, making it a reliable solution for devices that require a higher-rated, heavier-gauge cable. The C13 end connects to a computer, mobile cart, printer, scanner, monitor or other compatible hospital component with a three-pin C14 inlet. The NEMA 5-15P-HG green-dot plug connects to a hospital-grade AC power source located outside patient-care vicinities. The 25-ft. (7.62 m) length allows you great flexibility in placing equipment with respect to the power outlet.
Designed and Tested to Strict Hospital-Grade Standards
This hospital-grade power cord is tested to ANSI/UL 62 and 817 standards, as well as CAN/CSA C22.2 no. 21 and 49 standards, ensuring it's a dependable power solution for hospital environments.

Package Includes

  • P006-025-HG15 NEMA 5-15P to C13 Computer Power Cable, 25-ft. (7.62 m), Black
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332193315
Device Compatibility Mobile Cart; Computer; Printer; Monitor/HDTV; Server; UPS; PDU
Country/Region North America
INPUT
Maximum Input Amps 15
Voltage Compatibility (VAC) 125
PHYSICAL
Plug Color Black
Cable Jacket Color Black
Cable Jacket Material PVC
Cable Jacket Rating FT2
Power Cord Jacket Type SJT
Cable Outer Diameter (OD) 9.2mm
Number of Conductors 3
Wire Gauge (AWG) 14
Cable Length (ft.) 25
Shipping Dimensions (hwd / in.) 14.17 x 11.80 x 0.50
Shipping Weight (lbs.) 2.40
ENVIRONMENTAL
Operating Temperature Range -4 TO 140 F (- 20° TO 60°C)
Storage Temperature Range -4 TO 140 F (- 20° TO 60°C)
Operating Humidity Range 20-80% RH
Storage Humidity Range 20-80% RH
CONNECTIONS
Side A - Connector 1 NEMA 5-15P-HG
Side B - Connector 1 IEC-320-C13
FEATURES & SPECIFICATIONS
High Voltage Yes
Locking Plug No
Angled Plug No
STANDARDS & COMPLIANCE
Certifications UL/cUL
Approvals UL/CSA
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
