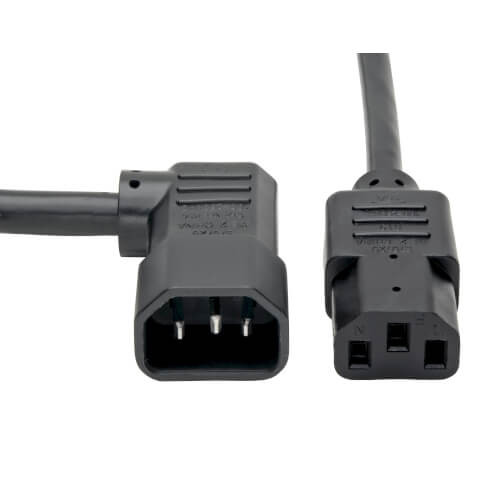

Tripp-Lite P005-006-14RA 6Ft Power Cord

$19.99
SKU:
P005-006-14RA
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

C14-to-C13 Power Cable for Network Devices That Require a Heavy-Gauge Connection
This IEC-320-C14 to IEC-320-C13 cable features 14 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. This C14 male to C13 female cord can be used to connect a computer, server, monitor or drive to a UPS system or PDU or replace or upgrade the standard power cord provided by the device's manufacturer. The 6-ft. (1.83 m) length allows you flexibility in placing equipment with respect to the power outlet.
Right-Angle C14 Plug Makes Connecting in Tight Spaces Easier
The C13 to C14 right-angle cable is easier to install in confined spaces, such as the back of a rack enclosure cabinet. When plugged in, the right-angled C14 plug guides the computer power supply cable parallel to your peripheral, allowing you to push the device up against a wall or hide it behind a desk to maximize space.

Package Includes

  • P005-006-14RA C13 to Right-Angle C14 Power Cable, 6-ft. (1.83 m), Black
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332179937
Device Compatibility Computer; Monitor/HDTV; Printer; Server; Router; Network Switch; UPS; PDU
Country/Region Global
INPUT
Maximum Input Amps 15
Voltage Compatibility (VAC) 100-250
PHYSICAL
Plug Color Black
Cable Jacket Color Black
Cable Jacket Material PVC
Cable Jacket Rating FT2
Power Cord Jacket Type SJT
Cable Outer Diameter (OD) 9.2mm
Number of Conductors 3
Wire Gauge (AWG) 14
Cable Length (ft.) 6
Shipping Dimensions (hwd / in.) 10.00 x 7.00 x 0.10
Shipping Weight (lbs.) 0.66
ENVIRONMENTAL
Operating Temperature Range -4 TO 140 F (- 20° TO 60°C)
Storage Temperature Range -4 TO 140 F (- 20° TO 60°C)
Operating Humidity Range 20-80% RH
Storage Humidity Range 20-80% RH
CONNECTIONS
Side A - Connector 1 IEC-320-C14 - RIGHT ANGLE
Side B - Connector 1 IEC-320-C13
FEATURES & SPECIFICATIONS
High Voltage Yes
Locking Plug No
Angled Plug Yes
STANDARDS & COMPLIANCE
Certifications UL/cUL, RoHS, REACH
Approvals UL/CSA
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
