Tripp-Lite P005-003-ARD 3Ft Heavy Duty Power Extension Cord

$8.99
SKU:
P005-003-ARD
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

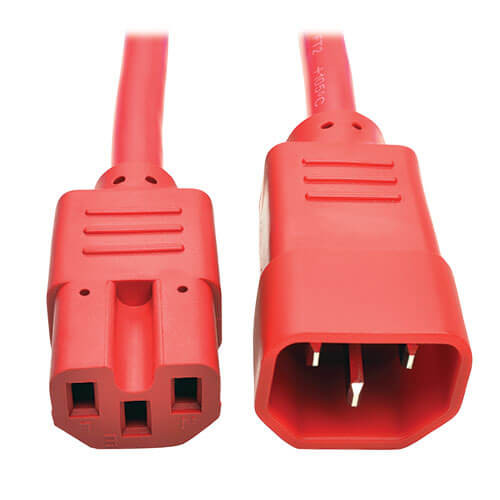

C14-to-C13 Power Cable for Network Devices That Require a Heavy-Gauge Connection
This IEC-320-C14 to IEC-320-C13 cable features 14 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. This C14 male to C13 female cord can be used to connect a computer, server, monitor or drive to a UPS system or PDU or replace or upgrade the standard power cord provided by the device’s manufacturer. The three-foot length helps reduce cable clutter and minimize the risk of tripping.
Color-Coded to Avoid Misidentification That Can Cause Costly Downtime
This computer power extension cord features a red SJT jacket and fully molded red ends. The color-coding allows easy, fast identification in a crowded rack or workstation and helps prevent the cable from becoming inadvertently disconnected.

Package Includes

  • P005-003-ARD Heavy-Duty C13 to C14 PDU-Style Power Extension Cable, 3 ft., Red
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332199003
Device Compatibility Computer; Monitor/HDTV; Printer; Server; Router; Network Switch; UPS; PDU
Country/Region Global
INPUT
Maximum Input Amps 15
Voltage Compatibility (VAC) 100-250
PHYSICAL
Plug Color Red
Cable Jacket Color Red
Cable Jacket Material PVC
Cable Jacket Rating VW-1
Power Cord Jacket Type SJT
Cable Outer Diameter (OD) 9.3mm
Number of Conductors 3
Wire Gauge (AWG) 14
Cable Length (ft.) 3
Shipping Dimensions (hwd / in.) 9.90 x 7.00 x 0.50
Shipping Weight (lbs.) 0.44
ENVIRONMENTAL
Operating Temperature Range -4 F TO 140 F (-20 C TO 60 C)
Storage Temperature Range -4 F TO 140 F (-20 C TO 60 C)
Operating Humidity Range 10 TO 65% RH
Storage Humidity Range 10 TO 65% RH
CONNECTIONS
Side A - Connector 1 IEC-320-C14
Side B - Connector 1 IEC-320-C13
FEATURES & SPECIFICATIONS
High Voltage Yes
Locking Plug No
Angled Plug No
STANDARDS & COMPLIANCE
Certifications UL/cUL, RoHS, REACH
Approvals UL/CSA
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
