Product Overview
Features

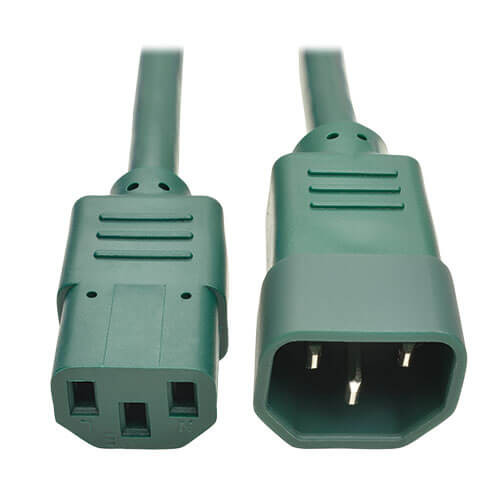

C14-to-C13 Power Cable Connects Computers, Printers, Servers and Other Equipment
This IEC-320-C14 to IEC-320-C13 cable is designed for small data center or office workstation applications that do not require a heavy-gauge connection. This C14 male to C13 female cord can be used to power a computer, server or monitor; attach a server or drive to a UPS system or PDU; or extend an existing connection up to three feet. The three-foot length helps reduce cable clutter and minimize the risk of tripping.
Color-Coded to Avoid Misidentification That Can Cause Costly Downtime
This computer power extension cord features a green SJT jacket and fully molded green ends. The color-coding allows easy, fast identification in a crowded rack or workstation and helps prevent the cable from becoming inadvertently disconnected.
Package Includes
- P004-003-AGN C14 Male to C13 Female Power Cable, 3 ft., Green
Specifications
OVERVIEW
| UPC Code | 037332198846 |
| Device Compatibility | Computer; Monitor/HDTV; Printer; Server; UPS; PDU |
| Country/Region | Global |
INPUT
| Maximum Input Amps | 10 |
| Voltage Compatibility (VAC) | 100-250 |
PHYSICAL
| Plug Color | Green |
| Cable Jacket Color | Green |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | FT2 |
| Power Cord Jacket Type | SJT |
| Cable Outer Diameter (OD) | 7.7mm |
| Number of Conductors | 3 |
| Wire Gauge (AWG) | 18 |
| Cable Length (ft.) | 3 |
| Shipping Dimensions (hwd / in.) | 0.50 x 5.70 x 8.80 |
| Shipping Weight (lbs.) | 0.60 |
ENVIRONMENTAL
| Operating Temperature Range | -4 TO 140 F (- 20° TO 60°C) |
| Storage Temperature Range | -4 TO 140 F (- 20° TO 60°C) |
| Operating Humidity Range | 20-80% RH |
| Storage Humidity Range | 20-80% RH |
CONNECTIONS
| Side A - Connector 1 | IEC-320-C14 |
| Side B - Connector 1 | IEC-320-C13 |
FEATURES & SPECIFICATIONS
| High Voltage | Yes |
| Locking Plug | No |
| Angled Plug | No |
STANDARDS & COMPLIANCE
| Certifications | UL/cUL, RoHS, REACH |
| Approvals | UL/CSA |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
Features
C14-to-C13 Power Cable Connects Computers, Printers, Servers and Other Equipment
This IEC-320-C14 to IEC-320-C13 cable is designed for small data center or office workstation applications that do not require a heavy-gauge connection. This C14 male to C13 female cord can be used to power a computer, server or monitor; attach a server or drive to a UPS system or PDU; or extend an existing connection up to three feet. The three-foot length helps reduce cable clutter and minimize the risk of tripping.
Color-Coded to Avoid Misidentification That Can Cause Costly Downtime
This computer power extension cord features a green SJT jacket and fully molded green ends. The color-coding allows easy, fast identification in a crowded rack or workstation and helps prevent the cable from becoming inadvertently disconnected.
Package Includes
- P004-003-AGN C14 Male to C13 Female Power Cable, 3 ft., Green
Specifications
OVERVIEW
| UPC Code | 037332198846 |
| Device Compatibility | Computer; Monitor/HDTV; Printer; Server; UPS; PDU |
| Country/Region | Global |
INPUT
| Maximum Input Amps | 10 |
| Voltage Compatibility (VAC) | 100-250 |
PHYSICAL
| Plug Color | Green |
| Cable Jacket Color | Green |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | FT2 |
| Power Cord Jacket Type | SJT |
| Cable Outer Diameter (OD) | 7.7mm |
| Number of Conductors | 3 |
| Wire Gauge (AWG) | 18 |
| Cable Length (ft.) | 3 |
| Shipping Dimensions (hwd / in.) | 0.50 x 5.70 x 8.80 |
| Shipping Weight (lbs.) | 0.60 |
ENVIRONMENTAL
| Operating Temperature Range | -4 TO 140 F (- 20° TO 60°C) |
| Storage Temperature Range | -4 TO 140 F (- 20° TO 60°C) |
| Operating Humidity Range | 20-80% RH |
| Storage Humidity Range | 20-80% RH |
CONNECTIONS
| Side A - Connector 1 | IEC-320-C14 |
| Side B - Connector 1 | IEC-320-C13 |
FEATURES & SPECIFICATIONS
| High Voltage | Yes |
| Locking Plug | No |
| Angled Plug | No |
STANDARDS & COMPLIANCE
| Certifications | UL/cUL, RoHS, REACH |
| Approvals | UL/CSA |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
