Product Overview
Features
OM4-Rated for 40 Gb Ethernet Applications
MTP/MPO Connectors with Push/Pull Tab
Error-Free Signal Transfer
- Designed to extend high-density connections between network equipment in telecommunication rooms and data centers
- Converts legacy 12-fiber Method A Polarity cables to Method B Polarity for use in Base-8 applications
- Supports speeds up to 40 GbE/100 GbE
- Backward compatible with existing 50/125 fiber
- Magenta-colored for identification as an OM4 cable
MTP/MPO Connectors with Push/Pull Tab
- 12-fiber male/female connectors
- Push/pull tab connector easy to install and remove with one hand
- 100% tested for low insertion loss and back reflection
Error-Free Signal Transfer
- 50/125 duplex glass fiber construction
- Meets current IEEE 802.3ae and TIA standards
- Plenum-rated OFNP jacket perfect for ceilings, walls and ducts
- Jacket features serial number for quality control and traceability
Package Includes

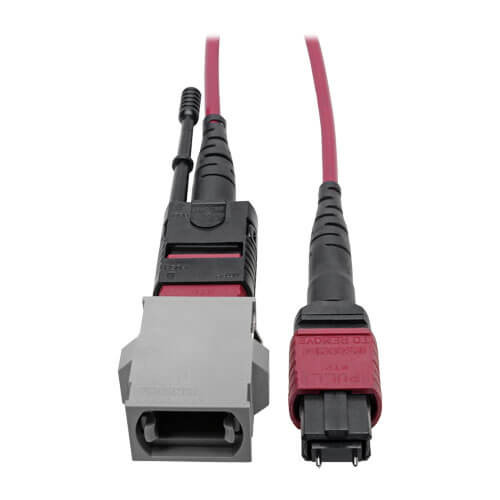

- N846-08N-A2B MTP/MPO Parallel Optics Base-8 Migration Fiber Adapter (M/F), Magenta, 8 in.
Specifications
OVERVIEW
| UPC Code | 037332203472 |
| Technology | Multimode |
| Optical Mode | OM4 |
PHYSICAL
| Cable Jacket Color | Magenta |
| Clad Diameter (microns) | 125 |
| Core Diameter (microns) | 50 |
| Number of Fibers | 12 |
| Cable Length (ft.) | 0.7 |
| Cable Length (in.) | 8 |
| Shipping Dimensions (hwd / in.) | 0.50 x 7.00 x 9.00 |
| Shipping Weight (lbs.) | 0.10 |
ENVIRONMENTAL
| Operating Temperature Range | -4 TO 140 F (-20 TO 60 C) |
| Storage Temperature Range | -4 TO 140 F (-20 TO 60 C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Storage Humidity Range | 35% to 65% RH, Non-Condensing |
COMMUNICATIONS
| Network Compatibility | 10 Gbps; 40 Gbps; 100 Gbps |
| Attenuation @ 1310NM | 1.0 dB/KM |
| Attenuation @ 850NM | 3.0 dB/KM |
| Insertion Loss | MTP/PC: ≤0.35dB; LC/PC: ≤0.20dB |
CONNECTIONS
| Side A - Connector 1 | 12-STRAND MTP/MPO (MALE) |
| Side B - Connector 1 | 12-STRAND MTP/MPO (FEMALE) |
FEATURES & SPECIFICATIONS
| Push/Pull Tabs | Yes |
STANDARDS & COMPLIANCE
| Certifications | RoHS, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
