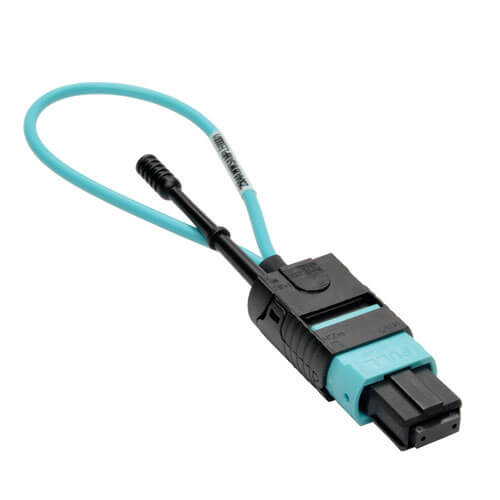

Tripp-Lite N844-LOOP-12F MTP / MPO Fiber Optic Loopback Tester Multimode 50/125um OM3

Tripp-Lite N844-LOOP-12F MTP / MPO Fiber Optic Loopback Tester Multimode 50/125um OM3

MSRP: $92.00
$83.99
(You save $8.01 )
SKU:
N844-LOOP-12F
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Overview

Tripp Lite N844-LOOP-12F MTP / MPO OM3 Fiber Optic Loopback Tester is typically used for test and measurement procedures in networking environments.The device is ideal for a multitude of applications that require signal looping in a MTP / MPO form factor. Features push-pull tab for easy disconnect. A dust cap is included for protection during storage.

Features

  • MTP / MPO OM3 Loopback Tester
  • Push-pull tab for quick disconnect
  • Protective dust cover included for protection during storage
  • 4-inch overall length
  • Pin config: 1 -12, 2-11, 3-10, 4-9, 5-8, 6-7

System Requirements

  • Networking hardware with MTP / MPO ports

Package Includes

  • MTP / MPO Fiber Optic Loopback Tester (Multimode 50/125um, OM3) - Female
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332188205
Accessory Type Cable Tester
Technology Multimode
Optical Mode   OM3
PHYSICAL
Cable Jacket Color Aqua
Connector Color Aqua; Black
Cable Jacket Material PVC
Cable Jacket Rating OFNP
Clad Diameter (microns) 125
Core Diameter (microns) 50
Number of Fibers 12
Cable Length (ft.) 0.33
Cable Length (in.) 4
Minimum Bend Radius 20MM (Dynamic); 10MM (Static)
Shipping Dimensions (hwd / in.) 5.90 x 4.00 x 0.50
Shipping Weight (lbs.) 0.01
ENVIRONMENTAL
Operating Temperature Range -4 to 140 °F (-20 to 60 °C)
Storage Temperature Range -4 to 140 °F (-20 to 60 °C)
Operating Humidity Range 5% to 85% RH, Non-Condensing
Storage Humidity Range 35% to 65% RH, Non-Condensing
COMMUNICATIONS
Network Compatibility 10 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
Attenuation @ 850NM 3.0dB/Km
Insertion Loss   ≤0.35dB
CONNECTIONS
Side A - Connector 1 12-STRAND MTP/MPO (FEMALE)
Side B - Connector 1 12-STRAND MTP/MPO (FEMALE)
Endface Polish PC
FEATURES & SPECIFICATIONS
Push/Pull Tabs Yes
STANDARDS & COMPLIANCE
Certifications RoHS, REACH
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
