Product Overview
Features
10G Duplex Multimode Cable Designed for Outdoor or Harsh Indoor Environments

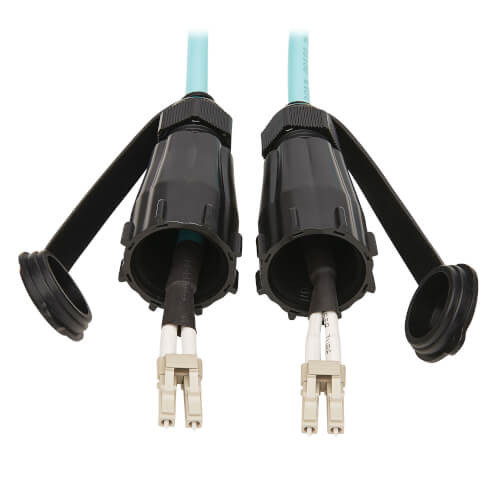

This three-foot (one-meter) 50/125 OM3 LC/LC IP68-rated outdoor cable is ideal for connecting 10G Ethernet fiber networks in outdoor applications and other areas where protection from harsh elements is essential, such as factories, warehouses, recycling plants, machine shops and other dusty environments. The rigid, durable cable and small-form-factor LC duplex connectors withstand dust, debris and moisture that could threaten your IT infrastructure. Included dust caps are located at both ends for protection from dust and debris when the connectors are not in use.
IP68 Rating Denotes Resistance to Dust and Water
The fiber cable is 100% protected against dust and able to endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance. Concentration of water moisture in fiber connectors will lead to glass damage and can severely disrupt or halt performance of optical cables. For applications that require IP68 protection, use the industrial cable with a Tripp Lite N206-SB01-IND surface-mount box and an N455-BC01-IND bulkhead coupler. If only IP44 protection against splashing water from all directions is required, pair the cable with a N206-FP01-IND, N206-FP02-IND or N206-FP04-IND metal wall plate and an N455-BC01-IND bulkhead coupler.
Color-Coded to Avoid Misidentification That Can Cause Costly Downtime
This fiber cable features an aqua PVC jacket with LC duplex ends. The color-coding allows easy, fast OM3 identification in a crowded rack, patch panel or workstation and helps prevent the cable from becoming inadvertently disconnected.
Package Includes
- N820-01M-IND 10Gb Duplex Multimode 50/125 OM3 Fiber Patch Cable, Aqua, 1 m
Specifications
OVERVIEW
| UPC Code | 037332252661 |
| Technology | Multimode |
| Optical Mode | OM3 |
PHYSICAL
| Cable Jacket Color | Aqua |
| Connector Color | Beige |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | OFNR |
| Cable Outer Diameter (OD) | 7.5mm |
| Clad Diameter (microns) | 50 |
| Core Diameter (microns) | 125 |
| Number of Fibers | 2 |
| Cable Length (ft.) | 3 |
| Cable Length (in.) | 39 |
| Minimum Bend Radius | 7.5 * 20=150mm |
ENVIRONMENTAL
| Operating Temperature Range | 14 ~ 122°F (-10 ~ 50°C) |
| Storage Temperature Range | 5 ~ 140°F (-15 ~ 60°C) |
| Relative Humidity | 0% ~ 90% RH, Non Condensing |
| Operating Humidity Range | 0% ~ 90% RH, Non Condensing |
| Storage Humidity Range | 0% ~ 90% RH, Non Condensing |
COMMUNICATIONS
| Network Compatibility | 10 Gbps |
| Attenuation @ 1310NM | 1.5dB/Km |
| Attenuation @ 850NM | 3.5db/Km |
| Insertion Loss | ≤ 0. 10 db |
CONNECTIONS
| Side A - Connector 1 | LC DUPLEX (MALE) |
| Side B - Connector 1 | LC DUPLEX (MALE) |
| Endface Polish | PC |
FEATURES & SPECIFICATIONS
| Optical Port | LC |
| Breakout | No |
| Trunk | No |
STANDARDS & COMPLIANCE
| Certifications | RoHS, REACH, IP68 |
| Protection Rating | IP68 |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
