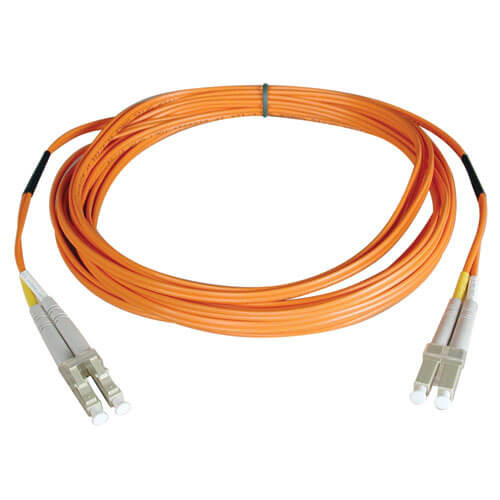

Tripp-Lite N520-04M 4M Duplex Multimode Fiber 50/125 Patch Cable LC/LC 13Ft

Tripp-Lite N520-04M 4M Duplex Multimode Fiber 50/125 Patch Cable LC/LC 13Ft

MSRP: $17.86
$16.99
(You save $0.87 )
SKU:
N520-04M
Shipping:
Calculated at Checkout
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Features

  • Constructed with 50/125 micron cable
  • Length - 4Meter
  • Use on fiber and fibre channel installations
  • LC male to LC male connectors
  • Higher bandwidth optimized for gigabit and 10Gbps networks
  • Backward compatible with 62.5 micron fiber
  • Built-in headroom for future applications
  • Number of fibers: 2
  • Fiber type: all glass graded index
  • Core diameter: two 50+/-3 microns
  • CLAD diameter: 125+/-2 microns
  • Primary coating diameter: 245+/-15 microns
  • Primary coating material: acrylate
  • Secondary coating diameter: 900+/-50 microns

Secondary coating material: PVC Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum Numeric aperture: .275 nominal Proof test level: 100,000 PSI Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze

System Requirements

Any fiber optic hardware or NIC card requiring multimode duplex cable with LC/LC connectors

Package Includes

4meter duplex MMF cable LC/LC 50/125 fiber

RoHS compliant

Specifications

OVERVIEW
UPC Code 037332143907
Technology Multimode
Optical Mode   OM2
PHYSICAL
Cable Jacket Color Orange
Connector Color Gray
Cable Jacket Material LSZH
Cable Jacket Rating OFNR
Clad Diameter (microns) 125
Core Diameter (microns) 50
Number of Fibers 2
Cable Length (ft.) 13.1
Cable Length (in.) 157.5
Minimum Bend Radius 20MM (Dynamic); 10MM (Static)
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (lbs.) 0.08
ENVIRONMENTAL
Operating Temperature Range -4 to 140 °F (-20 to 60 °C)
Storage Temperature Range -4 to 140 °F (-20 to 60 °C)
Operating Humidity Range 5% to 85% RH, Non-Condensing
Storage Humidity Range 35% to 65% RH, Non-Condensing
COMMUNICATIONS
Network Compatibility 1 Gbps (Gigabit); 10 Gbps
Attenuation @ 850NM 3.0dB/Km
Insertion Loss   ≤0.20dB
CONNECTIONS
Side A - Connector 1 LC DUPLEX (MALE)
Side B - Connector 1 LC DUPLEX (MALE)
Endface Polish PC
FEATURES & SPECIFICATIONS
Breakout No
Trunk No
STANDARDS & COMPLIANCE
Certifications RoHS, REACH
Approvals FDDI and OFNR rated
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
