Overview

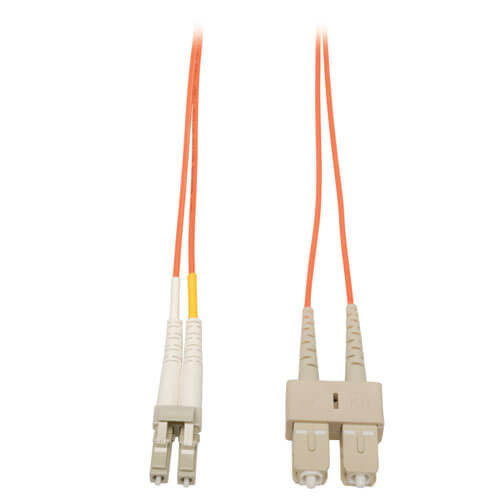

Tripp Lite's 10M (32.8-ft.) multimode duplex fiber optic SC/LC patch cable is manufactured from 62.5/125 zipcord fiber. The cable has LC to SC connectors, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in LAN applications.

Features

Manufactured from 62.5/125 duplex (zipcord) fiber
PVC jacket
Length: 10M (32.8-ft.) Connectors: 2 SC/LC connectors on each end
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Fiber made from glass (not a polymer)

System Requirements

Any fiber optic hardware or NIC card requiring multimode duplex cable with SC/LC connectors

Package Includes

10 meter ( 30-33ft ) Duplex MMF Cable LC/SC 62.5/125 Fiber

Specifications

OVERVIEW

UPC Code	037332122605
Technology	Multimode
Optical Mode	OM1

PHYSICAL

Cable Jacket Color	Orange
Connector Color	White; Beige
Cable Jacket Material	LSZH
Cable Jacket Rating	OFNR
Clad Diameter (microns)	125
Core Diameter (microns)	62.5
Number of Fibers	2
Cable Length (ft.)	32.8
Cable Length (in.)	393.7
Minimum Bend Radius	20MM (Dynamic); 10MM (Static)
Shipping Dimensions (hwd / in.)	9.00 x 7.00 x 0.75
Shipping Weight (lbs.)	0.12

ENVIRONMENTAL

Operating Temperature Range	-4 to 140 °F (-20 to 60 °C)
Storage Temperature Range	-4 to 140 °F (-20 to 60 °C)
Operating Humidity Range	5% to 85% RH, Non-Condensing
Storage Humidity Range	35% to 65% RH, Non-Condensing

COMMUNICATIONS

Network Compatibility	1 Gbps (Gigabit); 10 Gbps
Attenuation @ 850NM	3.0dB/Km
Insertion Loss	LC≤0.20dB; SC≤0.20dB

CONNECTIONS

Side A - Connector 1	LC DUPLEX (MALE)
Side B - Connector 1	SC DUPLEX (MALE)
Endface Polish	PC

FEATURES & SPECIFICATIONS

Breakout	No
Trunk	No

STANDARDS & COMPLIANCE

Certifications	RoHS, REACH
Approvals	FDDI and OFNR rated

WARRANTY

Product Warranty Period (Worldwide)

Lifetime limited warranty
