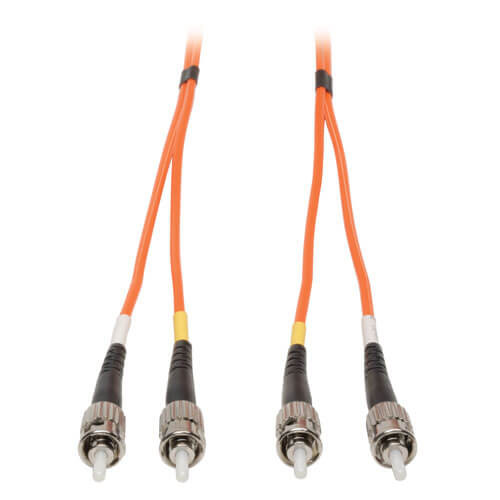

Tripp-Lite N302-15M Tripp Lite 15M Duplex Multimode Fiber 62.5/125 Patch Cable ST/ST 50Ft

Tripp-Lite N302-15M Tripp Lite 15M Duplex Multimode Fiber 62.5/125 Patch Cable ST/ST 50Ft

$34.99
SKU:
N302-15M
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Overview

Tripp Lite's 15-meter multimode duplex fiber optic ST/ST patch cable is manufactured from 62.5/125 zipcord fiber. The cable has ST connectors on each end, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in LAN applications.

Features

  • Manufactured from 62.5/125 duplex (zipcord) fiber
  • PVC jacket
  • Length: 15-meters(50ft) Connectors: 2 ST connectors on each end
  • Insertion loss testing performed on every connector (0.2db typical) and provided with cable
  • Beveled edge on ends of glass makes insertion of plug a breeze.
  • Fiber made from glass (not a polymer)
  • Color coded shrouds identify transmit and receive
  • Fiber optic distributed data interface (FDDI) rated
  • OFNR (riser rated)

System Requirements

  • Any fiber optic hardware or NIC card requiring multimode duplex cable with ST/ST connectors.

Package Includes

  • 15-meter (50-ft.) Duplex MMF Cable ST/ST 62.5/125 Fiber
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332117304
Technology Multimode
Optical Mode   OM1
PHYSICAL
Cable Jacket Color Orange
Connector Color Black
Cable Jacket Material LSZH
Cable Jacket Rating OFNR
Clad Diameter (microns) 125
Core Diameter (microns) 62.5
Number of Fibers 2
Cable Length (ft.) 49.2
Cable Length (in.) 590.6
Minimum Bend Radius 20MM (Dynamic); 10MM (Static)
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (lbs.) 0.44
ENVIRONMENTAL
Operating Temperature Range -4 to 140 °F (-20 to 60 °C)
Storage Temperature Range -4 to 140 °F (-20 to 60 °C)
Operating Humidity Range 5% to 85% RH, Non-Condensing
Storage Humidity Range 35% to 65% RH, Non-Condensing
COMMUNICATIONS
Attenuation @ 850NM 3.0dB/Km
Insertion Loss   ≤0.20dB
CONNECTIONS
Side A - Connector 1 ST DUPLEX (MALE)
Side B - Connector 1 ST DUPLEX (MALE)
Endface Polish PC
FEATURES & SPECIFICATIONS
Breakout No
Trunk No
STANDARDS & COMPLIANCE
Certifications RoHS, REACH
Approvals FDDI and OFNR rated
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
