Product Overview
Overview

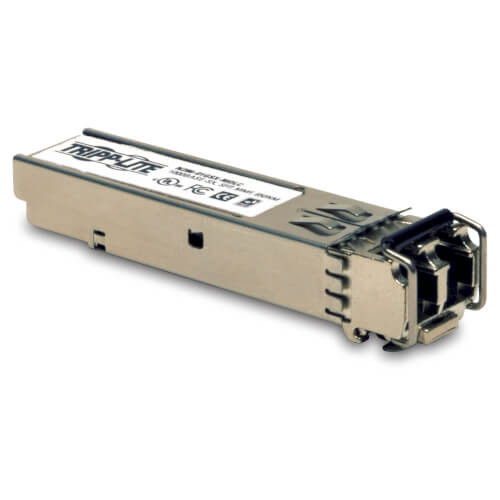

Tripp Lite N286-10GSR-MDLC, SFP+ (mini-GBIC) transceiver module, is designed for use with Cisco networking equipment, and is functionally equivalent to Cisco part number SFP-10G-SR=. This transceiver is manufactured to meet or exceed the specifications of the original Cisco unit, and to comply with Multi Source Agreement (MSA) standards. Tripp Lite guarantees 100% compatibility with Cisco networking hardware, and will initialize and perform identically to an OEM transceiver. See "Features" tab for a list of most common Cisco devices used with this model transceiver.
Features
- Cisco switch compatible...Comparable to SFP-10G-SR=
- Compliant with SFP Multi-Source Agreement (MSA) standards
- 300 meter transmission distance using 10Gb 50/125 Multimode cabling
- 850nm wavelength VCSEL Laser
- Duplex LC Connector
- 10Gbase-SR transceiver supports data transfer rates up to 11.1Gbps using 10Gb 50/125 MMF cabling
- Electrical interface compliant with SFF-8431
- Supports Digital Diagnostic Monitoring (DDM)
- Hot-pluggable
System Requirements
Package Includes
- N286-10GSR-MDLC
- Quick Start Guide
Specifications
OVERVIEW
| UPC Code | 037332185495 |
| Brand Compatibility | Cisco |
PHYSICAL
| Shipping Dimensions (hwd / in.) | 0.87 x 2.87 x 4.84 |
| Shipping Weight (lbs.) | 0.10 |
| Unit Dimensions (hwd / in.) | 0.33 x 0.52 x 2.24 |
| Unit Weight (lbs.) | 0.05 |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 158 °F (0 to 70 °C) |
| Storage Temperature Range | -40F to 185F |
| Relative Humidity | 5 to 95% RH, Non-Condensing |
| Operating Temperature | 32 to 158 °F (0 to 70 °C) |
COMMUNICATIONS
| Network Compatibility | 10 Gbps |
| Wavelength | 850nm |
| Transmission Distance | 300 m |
CONNECTIONS
| Side A - Connector 1 | SFP+ (MALE) |
| Side B - Connector 1 | LC DUPLEX (FEMALE) |
FEATURES & SPECIFICATIONS
| Optical Port | LC |
| Multi-Source Agreement (MSA) Compliant | Yes |
WARRANTY
| Product Warranty Period (Worldwide) | 3-year limited warranty |
