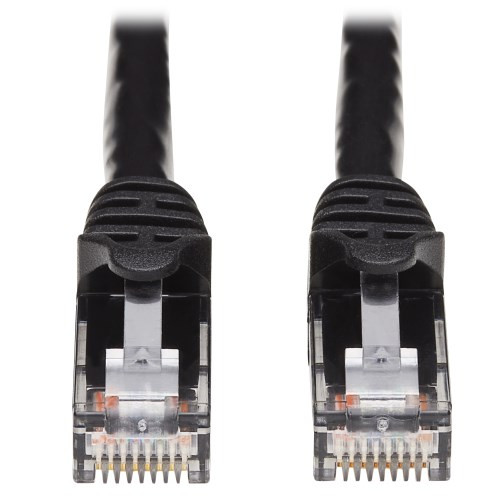

Tripp-Lite N261-003-BK Augmented Cat6 Cat6a Snagless 10G Patch Cable RJ45 Black 3Ft

Tripp-Lite N261-003-BK Augmented Cat6 Cat6a Snagless 10G Patch Cable RJ45 Black 3Ft

MSRP: $7.73
$4.99
(You save $2.74 )
SKU:
N261-003-BK
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Overview

Tripp Lite's N261-003-BK 3-ft. (0.91 m) Black Augmented Cat6 (Cat6a) Unshielded (UTP) Snagless patch cable allows 10Gbps data transmission over 4-pair copper. Each Cat6a cable is individually tested and certified on Fluke® test equipment. Snag-free strain relief boot provides the most secure and accurate connections.

Features

  • 3-ft. (0.91 m) Black Cat6a Unshielded (UTP) Snagless Patch Cable - 10Gbps
  • 100% FLUKE® tested and certified
  • ETL/UL Verified
  • Supports IEEE 802.3af and is DTE power compliant
  • Backward compatible with all previous 10BaseT generations
  • RJ45 plug improves NEXT performance to 500Mhz
  • 24AWG, 4-Pair, Stranded PVC cable
  • Compatible with T568A and T568B wiring
  • Easy disconnect snagless hood
  • PoE rated to four times the standard

Package Includes

  • 3-ft. (0.91 m) Cat6a Black Patch Cable
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332187734
Technology Cat6a
PHYSICAL
Cable Jacket Color Black
Cable Jacket Material PVC
Cable Jacket Rating FT4
Cable Shielding UTP
Cable Outer Diameter (OD) 6.2mm
Number of Conductors 4 Pair
Conductor Material Stranded Copper
Conductor Gauge 24 AWG
Cable Length (ft.) 3
Cable Length (in.) 36
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (lbs.) 0.10
ENVIRONMENTAL
Operating Temperature Range 14 to 104 F (-10 to 40 C)
Storage Temperature Range 5 to 122 F (-15 to 50 C)
Operating Humidity Range 0% TO 90% RH, Non-Condensing
Storage Humidity Range 0% TO 90% RH, Non-Condensing
COMMUNICATIONS
Bandwidth per TIA Standard 500 MHz
Maximum Bandwidth as Tested 600 MHz
Network Compatibility 10 Gbps
IEEE Standards Supported 802.3an
CONNECTIONS
Side A - Connector 1 RJ45 (MALE)
Side B - Connector 1 RJ45 (MALE)
Crossover Wiring No
Contact Plating   Gold
Connector Type Snagless
Wiring Configuration EIA/TIA 568B
FEATURES & SPECIFICATIONS
IP68 Rated   No
Snagless Connector Yes
STANDARDS & COMPLIANCE
Certifications RoHS, REACH
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
