Product Overview
Overview

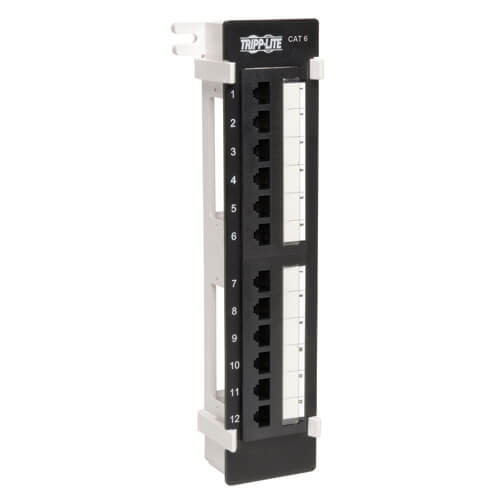

Tripp Lite's Cat6 wall-mount patch panel guarantees compatibility with all networks. Color-coded for both EIA/TIA 568a & 568b installations. Panel comes with 110-type termination blocks. This 12" panel effortlessly mounts to a wall or desk with two "C" brackets. Mounting bracket is provided.
UTP Cat6 22-24 AWG solid cable
Features
- CAT6 Rated/Certified
- UL Approved
- 110 punch down termination
- Ports clearly numbered both on front and back
- Labels on front enable each port to be named.
- Color-coded label on back offers both EIA/TIA 568A & 568B wiring
- Metal frame
- Includes mounting bracket
Package Includes
- Cat6 Wall Mount Patch Panel 568B-12 Port w/bracket
- 2 mounting screws
- Pkg wire ties
- Instruction Sheet
Specifications
OVERVIEW
| UPC Code | 037332131034 |
| Product Type | Punchdown |
| Technology | Cat5/5e; Cat6 |
PHYSICAL
| Shipping Dimensions (hwd / in.) | 11.02 x 3.15 x 2.17 |
| Shipping Weight (lbs.) | 0.68 |
| Unit Dimensions (hwd / in.) | 3.3 x 10.0 x 1.9 (with bracket) |
CONNECTIONS
| Number of Ports | 12 |
| Side A - Connector 1 | 110 IDC |
| Side B - Connector 1 | RJ45 (FEMALE) |
| PoE Type | Type 2 PoE+ (30W, IEEE 802.3at) |
STANDARDS & COMPLIANCE
| Approvals | RoHS |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warranty |
