Description
Perfect Solution for High-Speed Cat6a Premise Applications
- Ideal for data centers where local code allows CMR-rated PVC jackets and 10GBase-T communication is essential
- Delivers speeds up to 10 Gbps
- Ideal for 10/100/1000 Base-T Ethernet applications
Premium Construction for Superior Performance
- Made from 23 AWG copper wire
- 4-pair solid Unshielded UTP
- Minimum near-end crosstalk and ANEXT
- Flame-retardant unshielded CMR-rated PVC jacket
- Meets most current industry standards, including RoHS, IEEE 802.3, ANSI/EIA/TIA 568 and ISO/IEC 11801

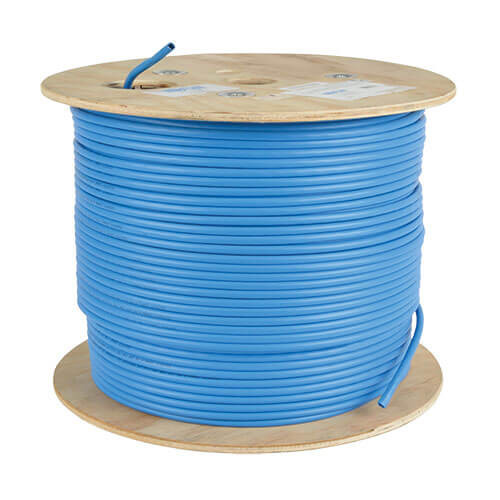

- N223-01K-BL Cat6a 10G Bulk Solid-Core 4-Pair Unshielded PVC / CMR Cable, Blue, 1000 ft.
OVERVIEW
| UPC Code | 037332181787 |
| Technology | Cat6a |
PHYSICAL
| Cable Jacket Color | Blue |
| Cable Jacket Rating | CMR |
| Cable Shielding | UTP |
| Conductor Material | Solid Copper |
| Cable Length (ft.) | 1000 |
| Cable Length (in.) | 12000 |
| Shipping Dimensions (hwd / in.) | 12.90 x 9.50 x 9.50 |
| Shipping Weight (lbs.) | 49.00 |
COMMUNICATIONS
| Bandwidth per TIA Standard | 500 MHz |
| Maximum Bandwidth as Tested | 600 MHz |
| Network Compatibility | 10 Gbps |
CONNECTIONS
| Side A - Connector 1 | BARE WIRE |
| Side B - Connector 1 | BARE WIRE |
| Crossover Wiring | No |
| Connector Type | Bare Wire |
FEATURES & SPECIFICATIONS
| IP68 Rated | No |
| Snagless Connector | No |
WARRANTY
| Product Warranty Period (Worldwide) | Lifetime limited warran |
