Designed for premise (in-wall) cabling applications
Meets category 6 cabling standards
Premium cabling for category 6, category 5e and category 5 applications
Drastically reduce impedance and structural return loss compared to standard 100MHz wire
High-quality copper wire
Length: 1000-ft. Color: gray
23 AWG 4-pair solid cable with PVC ( CMR ) jacket
Deliver stable performance up to 550MHz/ 1 Gbps communication
Meets most current industry standards including IEEE 802.3ab, IEEE 802.5, ANSI/EIA/TIA 568, ISO/IEC 11801 and ETL (category 6 draft 11)
Available in plenum cable (N224-01K-GY)
System Requirements
For 1000 Base-T (1Gbps Ethernet), 10/100 Base-T (Ethernet), 100 Mbps TPDDI, 155 Mbps ATM, ISDN, voice and Token Ring TYPE 3 applications as well as EIA/TIA applications
Package Includes

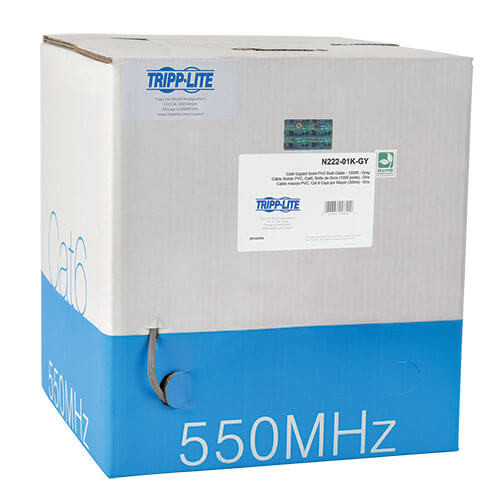

1000-ft. Cat6 Gigabit Bulk Solid Gray PVC Cable
Specifications
OVERVIEW
UPC Code
037332117090
Technology
Cat6
PHYSICAL
Cable Jacket Color
Gray
Cable Jacket Rating
CMR
Cable Shielding
UTP
Cable Outer Diameter (OD)
0.244 in +/- 0.008 in.
Conductor Material
Solid Copper
Cable Length (ft.)
1000
Cable Length (in.)
12000
Shipping Dimensions (hwd / in.)
13.78 x 14.17 x 13.78
Shipping Weight (lbs.)
29.50
ENVIRONMENTAL
Operating Temperature Range
-4 to 167 °F (-20 to 75 °C)
COMMUNICATIONS
Bandwidth per TIA Standard
250 MHz
Maximum Bandwidth as Tested
500 MHz
Network Compatibility
1 Gbps (Gigabit)
CONNECTIONS
Side A - Connector 1
BARE WIRE
Side B - Connector 1
BARE WIRE
Crossover Wiring
No
Connector Type
Bare Wire
FEATURES & SPECIFICATIONS
IP68 Rated
No
Snagless Connector
No
STANDARDS & COMPLIANCE
Approvals
UL verified, meets EIA/TIA CAT6 TIA/EIA- 568-B-2.1, DRAFT 9 standards
