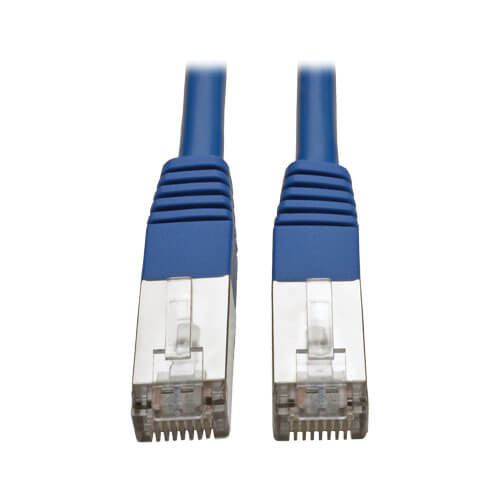

Tripp-Lite N105-015-BL 15' Cat5e Molded Shielded Patch Cable STP RJ45 M/M 350 Mhz Blue

$10.99
SKU:
N105-015-BL
Shipping:
Calculated at Checkout
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Overview

The N105-015-BL Cat5e 350 MHz Molded Shielded STP Patch Cable is recommended for connecting network components like printers, computers, copiers, routers, servers, modems, hubs, patch panels and switches in high-density data centers. Designed for fast transmission and excellent signal quality, this 15-ft. (4.57 m) blue cable ensures peak performance throughout your local area network (LAN). EMI/RFI shielding protects your Ethernet network from disruptive line noise.

Manufactured from 24 AWG copper wire and a durable PVC jacket, the four-pair stranded STP N105-015-BL delivers speeds up to 350 MHz/1 Gbps. Molded RJ45 male connectors with gold-plated contacts guarantee an accurate signal transfer. Integral strain relief ensures the cable and connectors last a long time. Certified to TIA/EIA-568B and UL standards.

Features

Recommended Solution for Your Networking Needs
  • Ideal for connecting components like printers, computers, copiers, routers, servers, modems and switches in high-density data centers
  • Designed for fast transmission and excellent signal quality
  • Ensures peak performance throughout your LAN
  • EMI/RFI shielding protects network from disruptive line noise
  • Delivers speeds up to 350 MHz/1 Gbps

Premium Construction for Superior Performance
  • Made from 24 AWG copper wire
  • PVC 4-pair stranded STP with drain wire
  • Molded RJ45 male connectors with gold-plated contacts
  • Integral strain relief for long life
  • TIA/EIA and UL certified

Package Includes

  • N105-015-BL Cat5e 350 MHz Molded Shielded STP Patch Cable (RJ45 M/M), Blue, 15-ft. (4.57 m)
RoHS compliant

Specifications

OVERVIEW
UPC Code 037332148254
Technology Cat5/5e
POWER
Power Over Cable (PoC) Support No
PHYSICAL
Cable Jacket Color Blue
Cable Jacket Material PVC
Cable Jacket Rating CM
Cable Shielding STP
Cable Outer Diameter (OD) 5.9MM
Number of Conductors 4 Pair
Conductor Material Stranded Copper
Conductor Gauge 24 AWG
Cable Length (ft.) 15
Cable Length (in.) 180
Shipping Dimensions (hwd / in.) 9.00 x 7.00 x 0.50
Shipping Weight (lbs.) 0.43
ENVIRONMENTAL
Operating Temperature Range 14 to 104 F (-10 to 40 C)
Storage Temperature Range 5 to 122 F (-15 to 50 C)
Operating Humidity Range 0% to 90% RH, Non-Condensing
Storage Humidity Range 0% to 90% RH, Non-Condensing
COMMUNICATIONS
Bandwidth per TIA Standard 100 MHz
Maximum Bandwidth as Tested 350 MHz
Network Compatibility 1 Gbps (Gigabit)
IEEE Standards Supported 802.3ab
CONNECTIONS
Side A - Connector 1 RJ45 (MALE)
Side B - Connector 1 RJ45 (MALE)
Crossover Wiring No
Contact Plating   Gold
Connector Type Molded
Wiring Configuration EIA/TIA 568B
FEATURES & SPECIFICATIONS
Snagless Connector No
STANDARDS & COMPLIANCE
Certifications RoHS, REACH
WARRANTY
Product Warranty Period (Worldwide) Lifetime limited warranty
