Description
Overview

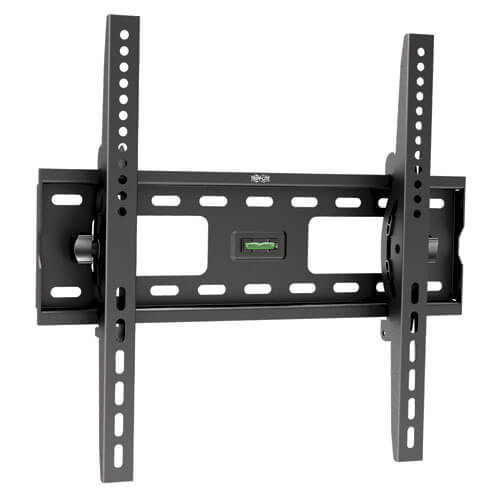

The VESA-compliant DWT2655XP Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 26 to 55 inches. A -10° to +10° tilt capability minimizes glare and provides comfortable viewing from multiple angles.
Low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 lbs (74.8 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm and 400 x 400 mm
Features
Mounts Your TV or Monitor to the Wall
- Fits most flat-panel televisions, monitors and other displays from 26 to 55 in.
- Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
- Mounts out of sight behind display for sleek, professional appearance
- Mounting hardware included
Convenient One-Touch Adjustment
- -10° to +10° tilt capability provides comfortable viewing from multiple angles
- Improves viewing angles in applications where audience is below the display
Durable Metal Construction
- Supports up to 165 lbs (74.8 kgs).
- Open frame allows easy wall access
- Adjustable mounting rails compensate for off-center wall studs
- Built-in bubble level for accurate display leveling
- Scratch-resistant powder-coated finish
VESA Compliance
- Supports the following VESA mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm and 400 x 400 mm
Package Includes
- DWT2655XP Tilt Wall Mount for 26" to 55" TVs and Monitors
- (4) M5 x 14 screws
- (4) M6 x 14 screws
- (4) M6 x 30 screws
- (4) M8 x 20 screws
- (4) M8 x 30 screws
- (4) Washers
- (8) Small spacers
- (4) Big spacers
- (6) Anchor bolts
- (6) Concrete anchors
- (6) D6 washers
- Owner’s manual
Specifications
OVERVIEW
| UPC Code | 037332183590 |
| Device Compatibility | Monitor/HDTV |
PHYSICAL
| Material of Construction | Steel |
| Color | Black |
| VESA Pattern (mm) | 200x200; 200x300; 200x400; 300x200; 300x300; 300x400; 400x200; 400x300; 400x400 |
| Motion | Tilt |
| Mounting Location | Wall |
| Degrees of Motion | -10/+10 Tilt |
| Minimum Screen Size (in.) | 26 |
| Maximum Screen Size (in.) | 55 |
| Maximum Weight Capacity (lbs.) | 165 |
| Number of Displays | 1 |
| Shipping Dimensions (hwd / in.) | 3.00 x 6.20 x 19.20 |
| Shipping Weight (lbs.) | 6.72 |
| Unit Dimensions (hwd / in.) | 5.91 x 18.11 x 2.48 |
| Unit Weight (lbs.) | 6.78 |
FEATURES & SPECIFICATIONS
| Cord Management | No |
| Tools Necessary | Yes |
STANDARDS & COMPLIANCE
| Approvals | RoHS3, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | 5-year limited warranty |
