Description
Features

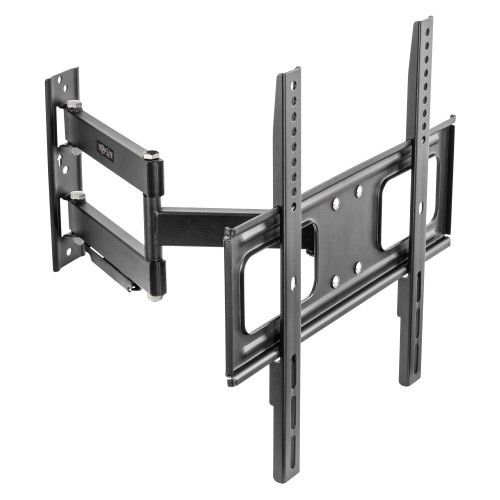

Outdoor TV Wall Mount Positions Your Monitor at the Perfect Viewing Angle
This VESA-compliant full-motion TV wall mount lets you place your outdoor display signage or television where everyone can see it best. It's ideal for decks, balconies, patios, swimming pools, urgent care facilities, billboards, marquees, hotels, malls, theme parks, transportation hubs and anywhere else people watch a television set or monitor outdoors. It fits most flat-panel TVs from 37 to 80 inches and supports up to 110 pounds (50 kg).
Swivel and Tilt the Screen to Find the Perfect and Most Comfortable Viewing Angle
The full-motion articulating arm adjusts independently to optimize viewing angles, minimize glare and improve ergonomics. To minimize screen glare, reduce eye fatigue and increase viewing comfort, the mount features -20° to +10° tilt and -90° to +90° swivel for positioning your screen just right. Easy -3° to +3° screen adjustment lets you quickly find just the right angle without interrupting your day.
VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this TV wall mount supports the following VESA mounting hole patterns: 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 300 and 400 x 400. Hardware for mounting on wood or concrete block is included.
Sure to Stand Up Against Weather and Other Outdoor Elements
The weatherproof steel frame, high-grade powder-coated finish, stainless steel hardware and wall plate covers are specifically designed to withstand the stress of repeated adjustments and outdoor use. Monitor cables clip to the arm to eliminate clutter and keep your outdoor setting organized.
System Requirements
- Flat-screen television or monitor from 32 to 80 in.
Package Includes
- Mount
- (2) Adapter brackets
- Hex wrench
- (4) M5 x 14 screws
- (4) M6 x 14 screws
- (4) M6 x 30 screws
- (4) M8 x 30 screws
- (4) M8 x 50 screws
- (4) D6 washers
- (4) D8 washers
- (8) Small spacers
- (8) Large spacers
- (4) Tapping screws
- (4) Concrete anchors
- (4) Washers
- Owner’s manual
Specifications
OVERVIEW
| UPC Code | 037332258786 |
| Device Compatibility | Monitor/HDTV |
PHYSICAL
| Material of Construction | Steel |
| Color | Black |
| VESA Pattern (mm) | 200x200; 300x200; 300x300; 400x200; 400x300; 400x400 |
| Motion | Full |
| Mounting Location | Wall |
| Degrees of Motion | -20/+10 Tilt; 180 Swivel; -3/+3 Level Adjustment |
| Minimum Screen Size (in.) | 32 |
| Maximum Screen Size (in.) | 70 |
| Maximum Weight Capacity (lbs.) | 110 |
| Min/Max Arm Extension (in.) | 4.57 min to 20.63 max |
| Number of Displays | 1 |
| Shipping Dimensions (hwd / in.) | 22.00 x 10.60 x 2.60 |
| Shipping Weight (lbs.) | 9.60 |
| Unit Dimensions (hwd / in.) | 18.9 x 16.9 x 8.6 |
| Unit Weight (lbs.) | 8.4 |
FEATURES & SPECIFICATIONS
| Cord Management | Yes |
| Tools Necessary | Yes |
STANDARDS & COMPLIANCE
| Approvals | RoHS3, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | 5-year limited warranty |
