Description
Overview

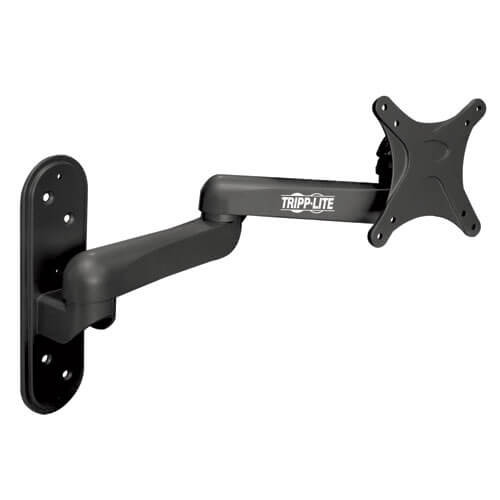

The VESA-compliant DWM1327SE Swivel/Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home, office, hotels, bars and restaurants, it fits most flat-panel displays from 13 to 27 inches.
The full-motion swivel arm can be adjusted for angle to give you maximum flexibility in positioning your display to fit your environment and comfort level. A 180° swivel and -15° to +15° tilt capability minimizes glare and provides comfortable viewing from multiple angles.
Durable all-metal frame with scratch-resistant powder-coated finish supports up to 33 lbs (14.9 kgs). Comes fully assembled for quick mounting to the wall with included hardware. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 100 x 75 mm, and 100 x 100 mm.
Features
Mounts Your TV or Monitor to the Wall
- Fits most flat-panel televisions, monitors and other displays from 13 to 27 in.
- Ideal for home, office, hotels, bars and restaurants
- Full-motion swivel arm adjusts for angle
- Mounting hardware included
Convenient One-Touch Adjustment
- 180° swivel and -15° to +15° tilt capability provides comfortable viewing from multiple angles
Durable Metal Construction
- Supports up to 33 lbs (14.9 kgs)
- Scratch-resistant powder-coated finish blends with any décor
- Fully assembled for immediate installation
VESA Compliance
- Supports the following VESA mounting hole patterns: 75 x 75 mm, 75 x 100 mm, 100 x 75 mm, and 100 x 100 mm
Package Includes
- DWM1327SE Swivel/Tilt Wall Mount for 13" to 27" TVs and Monitors
- (4) M4 screws
- (4) M5 screws
- (4) Anchor bolts
- (4) Concrete anchors
- Hex key, 4 mm
- Hex key, 5 mm
- Owner’s manual
Specifications
OVERVIEW
| UPC Code | 037332183514 |
| Device Compatibility | Monitor/HDTV |
PHYSICAL
| Material of Construction | Steel |
| Color | Black |
| VESA Pattern (mm) | 75x75; 100x100 |
| Motion | Full |
| Mounting Location | Wall |
| Degrees of Motion | -15/+15 Tilt; 180 Swivel |
| Minimum Screen Size (in.) | 13 |
| Maximum Screen Size (in.) | 27 |
| Maximum Weight Capacity (lbs.) | 33 |
| Min/Max Arm Extension (in.) | 4.14 min to 15.95 max |
| Number of Displays | 1 |
| Shipping Dimensions (hwd / in.) | 9.40 x 2.80 x 11.00 |
| Shipping Weight (lbs.) | 2.75 |
| Unit Dimensions (hwd / in.) | 8.27 x 15.94 x 4.6 |
| Unit Weight (lbs.) | 2.66 |
FEATURES & SPECIFICATIONS
| Cord Management | No |
| Tools Necessary | Yes |
STANDARDS & COMPLIANCE
| Approvals | RoHS3, REACH |
WARRANTY
| Product Warranty Period (Worldwide) | 5-year limited warranty |
