Product Overview

Features

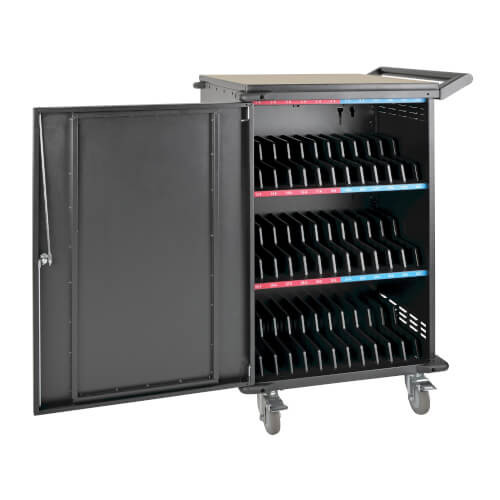

Charges 36 Chromebooks and Laptops Up to 15 in.

Device power adapters plug into internal NEMA 5-15R outlets (up to 1,440 watts total)
Also charges tablets and other USB devices through their power adapters
Extra internal AC outlet for powering peripherals
RJ45 jack for external Ethernet networking
10-ft. (3.05 m) AC input cord with NEMA 5-15P plug reaches distant outlets

Timed Device Charging to Guard Against Overloads

Internal outlets split into 2 color-coded zones of 18 outlets each
Timer alternates charging between zones hourly
LEDs indicate which zone is being charged

Dual External AC Outlets

NEMA 5-15R outlets for connecting projectors and other devices
Can be switched on and off to protect against possible overloads

Comprehensive Protection

Devices and adapters kept in separate, lockable compartments
Doors lock with included keys to help prevent theft, damage and tampering
Flow-through ventilation helps prevent overheating
Circuit breaker protects against overloads
Heavy-duty steel construction and powder-coated finish promote long-term durability

Clutter-Reducing Organization

Heavy power adapters store out of the way in removable rear baskets
Cables and connectors run through shelf slots and overhead cable manager
Device spaces numbered for easy identification

Simple Mobility

Locking swivel casters with non-marking wheels for smooth, even ride
Reversible wide-grip handle assists cart control
Power cord wrap keeps input cord out of the way
Corner safety bumpers prevent scratches on walls and doorways
Compact cart fits in same space as typical AV cart

Flexible Configuration

Ships ready for quick, easy installation—just attach handle, bumpers and cord wrap
Adjustable dividers accommodate up to 12 devices per shelf
Laminated wood-grain top serves as a smooth writing surface

Package Includes

CSC36AC 36-Device AC Charging Station Cart, Black
Cart handle
Input cord wrap
(6) Protective bumpers
(10) Hex screws
Hex key
(2) Keys
Owner’s manual

Specifications

OVERVIEW

UPC Code	037332200488
Product Type	Multi-Device Charger
Charging Form Factor	Mobile Cart
Functions	Charge; Secure
Device Compatibility	Chromebook; Laptop
Device Slots	36

INPUT

Nominal Input Voltage(s) Supported	120V AC
Voltage Compatibility (VAC)	120
Input Frequency	60 Hz
Input Plug Type	NEMA 5-15P
Input Cord Length (ft.)	10

CHARGING

Number of Charging Ports	36
Charging Method	AC
Charging Port Type	NEMA 5-15R
Charging Ports Details	Pass through
Charging Ports / Amps	(36) 12A
Overcharge Protection	No
Charging Amps per Port	12A

PHYSICAL

Material of Construction	Steel
Color	Black
Charging Station Form Factor	Mobile Cart
Shipping Dimensions (hwd / in.)	46.85 x 26.77 x 29.13
Shipping Weight (lbs.)	188.00
Slot Dimensions - Bottom (hwd / in.)	10.11 x 1.5 x 15.58
Slot Dimensions - Middle (hwd / in.)	10.13 x 1.5 x 15.58
Slot Dimensions - Top (hwd / in.)	10.13 x 1.5 x 15.58
Unit Dimensions (hwd / in.)	42.3 x 27.97 x 26.04 (with handle installed)
Unit Weight (lbs.)	110.23
Number of Shelves	3

FEATURES & SPECIFICATIONS

Cord Management	Yes
EMI/RFI Line Noise Protection	No
Locking	Yes
Lock Type	Key
Built-In Circuit Breaker	Yes
Overcurrent Protection	Yes
Flow-Through Ventilation	Yes
UV Sterilization	No

STANDARDS & COMPLIANCE

Certifications	UL 60950-1 (Power Component); CAN/CSA 22.2 No. 60950-1 (Power Component)
Approvals	RoHS
NOM (Mexico)	Tested to NOM (Mexico)

WARRANTY

Product Warranty Period (Worldwide)

2-year limited warranty
