Add Batteries to Empty Cabinet to Extend the Runtime of SV-Series UPS Systems

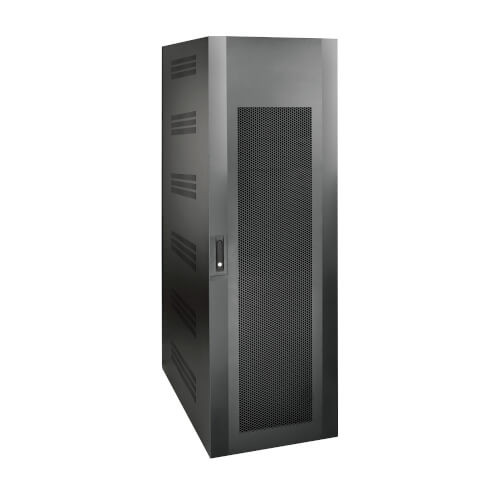

Tripp Lite’s BP240V370NB consists of an empty battery cabinet that requires 40 user-supplied 12V 100Ah sealed lead acid batteries (CSB model GPL 121000 or equal). When populated with user-supplied batteries, this external backup battery pack extends runtime for SV-Series UPS systems. Up to three external battery pack cabinets may be connected in parallel to increase runtime.
Enjoy Compatibility with SV-Series UPS Systems
The BP240V370NB external UPS battery pack uses a +/- 120V DC configuration and must be hardwired to a compatible UPS. Circuit breakers provide overcurrent protection. The BP240V370NB is compatible with Tripp Lite UPS models that begin with SV20, SV40, SV60, SV80, SV100, SV120 and SV140.
Maintain a Uniform Look in Network Environments
Made of powder-coated steel, the battery cabinet is designed to match the SV-Series UPS systems to keep a consistent look in your server room or data center. The cabinet door is lockable to control access to batteries. The top of the cabinet has conduit knockouts for user-supplied power output cables. Front and rear vents allow the free flow of warm air out of the cabinet.
Comply with TAA Requirements
The BP240V370NB complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
One-Year Warranty
The BP240V370NB is backed by a one-year limited warranty, ensuring reliability and performance.
System Requirements
- Compatible Tripp Lite SV-Series UPS System
- 40 user-supplied 12V 100Ah sealed lead acid batteries (CSB model GPL 121000 or equal)
Package Includes
- BP240V370NB External Battery Pack (No Batteries)
- Owner’s manual
Specifications
OVERVIEW
| UPC Code | 037332231031 |
INPUT
| Input Phase | 3-Phase |
BATTERY
| Expandable Battery Runtime | Multiple battery packs can be daisy-chained to the UPS for extended runtime |
| Expandable Runtime | Yes |
| DC System Voltage (VDC) | +/- 120VDC |
| UPS Connection | Hardwire (contractor supplies wiring - see Owner's Manual for requirements and installation information) |
PHYSICAL
| Material of Construction | Steel |
| External Battery Pack Form Factor | Tower |
| Shipping Dimensions (hwd / in.) | 80.31 x 28.74 x 48.00 |
| Unit Dimensions (hwd / in.) | 78.94 x 25.47 x 43.3 |
| Unit Weight (lbs.) | 3218 |
WARRANTY
| Product Warranty Period (Worldwide) | 1-year limited warranty |
