Product Overview
Overview

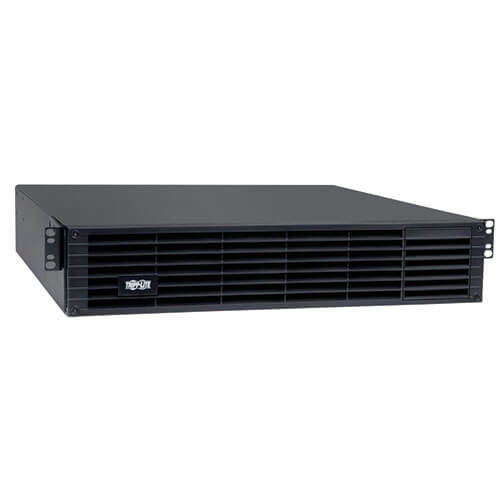

Tripp Lite's BP192V5RT2U rack external battery pack offers extended battery runtime when used in conjunction with compatible Tripp Lite UPS systems. Multi-use form factor supports configuration in rackmount or stacking applications using only 2 rack spaces (2U). Includes heavy-gauge cabling with high-current DC connectors for simple installation. COMPATIBLE UPS SYSTEMS - SU5000RT4U, SU6000RT4U, SU8000RT4U, SU5000RT4UHV, SU5000RT4UTF, SU6000RT4UHV, SU6000RT4UHVG, SU6000RT4UHVHW, SU6000RT4UHVPM, SU6000RT4UTFHW, SU6000RT4UTF and other Tripp Lite UPS systems that specify the use of this battery pack.
Features
- Offers extended-run UPS operation when used in conjunction with compatible Tripp Lite UPS systems
- Supports stacking or rackmount installation using only 2 rack spaces (2U)
- Mounting accessories included for 4 post rackmount installation
- Optional 2POSTRMKITWM enables installation in 2 post racks
- Includes heavy-gauge cabling with high-current DC connectors for simple installation
- COMPATIBLE UPS SYSTEMS - SU5000RT4U, SU6000RT4U, SU8000RT4U, SU5000RT4UHV, SU5000RT4UTF, SU6000RT4UHV, SU6000RT4UHVG, SU6000RT4UHVHW, SU6000RT4UHVPM, SU6000RT4UTFHW, SU6000RT4UTF and other Tripp Lite UPS systems that specify the use of this battery pack.
- NOTE: LIMIT OF 1 BP192V5RT2U PER UPS, SEE BP192V12-3U FOR MULTI-PACK COMPATIBILITY
Package Includes
- BP192V5RT2U external battery pack
- Mounting hardware
- Warranty information
- Instruction manual
Specifications
OVERVIEW
| UPC Code | 037332183781 |
INPUT
| UPS Input Cord Length (ft.) | 3 |
| Input Phase | Single-Phase |
BATTERY
| Expandable Battery Runtime | Includes a second input/output connector to daisy-chain multiple battery packs |
| Expandable Runtime | Yes |
| DC System Voltage (VDC) | 192 |
| UPS Connection | Detachable cable with UPS specific DC connector (90 cm length) |
| Typical Battery Lifespan | 4-6 years typical (North America) |
PHYSICAL
| Material of Construction | Steel |
| External Battery Pack Form Factor | Rack |
| Installation Form Factor Notes | Upright vertical tower configuration is not recommended for this model |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITWM ) |
| Minimum Required Rack Depth (inches) | 27.8 |
| Rack Height | 2U |
| Shipping Dimensions (hwd / in.) | 9.76 x 26.10 x 28.07 |
| Shipping Weight (lbs.) | 108.00 |
| Unit Dimensions (hwd / in.) | 3.43 x 17.32 x 19.83 |
| Unit Weight (lbs.) | 75.20 |
WARRANTY
| Product Warranty Period (U.S. & Canada) | 2-year limited warranty |
| Optional Coverage | 3 year, 5 year, next day and on-site warranty coverage available |
