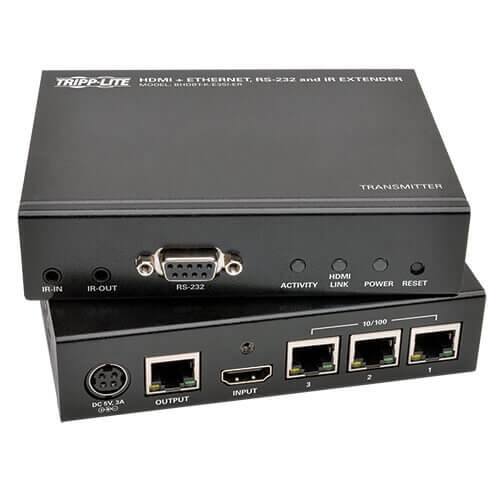

Extends HDMI Video/Audio, Ethernet, RS-232 Serial and IR Control Signals Over a Single Cat5e/6/6a Cable
Ideal for digital signage, classrooms, retail locations, conference rooms and trade show booths
Extends a high-definition 1920 x 1080 (1080p) @ 60 Hz signal up to 500 ft.
Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
Supports 3D video, EDID and HDCP
Reduces cable clutter and installation costs
Built-In 10/100 Ethernet Ports on Transmitter and Receiver
Allows connected devices to communicate with each other and access online content via LAN
Controls Other Display Devices
2-way 39 KHz IR remote control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor (and vice versa)
RS-232 serial port supports 115 Kbps full-duplex baud rates for scanners and touchscreen monitors
Easy to Set Up and Use
Plug and play with no software or drivers to download and install
Included mounting hardware for installing each unit on a wall, rack or pole
Locking HDMI Ports on Transmitter and Receiver
Prevent cables from coming loose or disconnected, ensuring an intact signal
TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Package Includes
Transmitter unit
Receiver unit
IR-IN cable - 5 ft.
IR-OUT cable - 6 ft.
(2) External Power Supplies with NEMA 1-15P Plug- 4.5 ft. (Input: 100–240V, 50/60 Hz, 1A; Output: 5V, 3A)
Mounting hardware
Owner’s manual
Specifications
OVERVIEW
UPC Code
037332188175
Product Type
Extender Kit
Accessory Type
Extender
Technology
HDBaseT; HDMI; IR; Cat5/5e; Cat6
VIDEO
Max Supported Video Resolution
1920x1080 (1080p @ 60Hz)
Max 720P Range (ft)
500
Max 1080P Range (ft)
500
Max 1280 x 720 (720p) Range (ft)
500
Max 1920 x 1080 (1080p) Range (ft)
500
Transmitter Video Input
HDMI
Receiver/Transceiver Video Output
HDMI
Receiver - Number of Video Outputs
1
Recommended Cabling
HDMI
HDR Support
No
3D Video Supported
Yes
Maximum Signal Range (ft)
500
AUDIO
Audio Input
HDMI
Audio Output
HDMI
Audio Specification
7.1 Channel Surround Sound, DTS-HD and Dolby TrueHD
POWER
Power Source Type
AC Adapter
AC Plug Type
NEMA 1-15P
Power Source
Transmitter or Receiver (Included)
Power Over Cable (PoC) Support
No
AC Adapter
Input: 4.5 ft 100-240V, 50/60Hz, 1A; Output: 5V, 3A
External Power Supply Input Specs (V / Hz / A)
100-240V / 50-60Hz / 1.0A
External Power Supply Output Specs (V / A)
5V/3A
External Power Supply Cord Length (ft.)
4.5
External Power Supply Cord Length (m.)
1.4
Power Consumption (Watts)
15.00
USER INTERFACE, ALERTS & CONTROLS
LED Indicators
RJ45 INPUT/OUTPUT (GREEN / POWER, ORANGE / LINK) RJ45 10/100 ETHERNET (GREEN / SIGNAL, FLASHING ORANGE / ACTIVITY) ACTIVITY (FLASHING ORANGE WHEN TX/RX POWERED AND CONNECTED) HDMI LINK (GREEN WHEN SIGNAL IS BEING SENT FROM SOURCE TO DISPLAY) POWER (GREEN)
PHYSICAL
Color
Black
Included Mounting Accessories
Wallmount
Number of Displays
1
Optional Mounting Accessory Notes
Can DIN Mount using Tripp Lite Bracket B110-DIN-02
