4-Port Presentation Switch Connects 4 Audio/Video Sources to One 4K HDMI Display
This HDMI presentation switch connects four separate HDMI source devices to your 4K television, projector or monitor's HDMI input and switches between them. For instance, connect up to four cable boxes, media servers, Blu-ray players, video game consoles, Roku boxes or other sources with HDMI outputs. Switch from one source to another using the manual push buttons, RS-232 commands or the included remote control.
Suitable for a Wide Range of Audio/Video Applications for Work or Play
This switch is recommended anywhere a variety of video signals is transmitted to a hi-def display. It is suitable for home theaters, video and multimedia presentations, security applications or digital signage in classrooms, bars, restaurants, conference rooms, lecture halls, exhibition centers and trade shows.
Transmits Crystal-Clear 4K Video with HDR, 4:4:4 Color and 7.1-Channel Audio
The B320-4X1-HH-K1 supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Full, rich, uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital surround sound ensure your ears receive the same treat as your eyes.
Remote Receiver Works Up to 50 ft. Away
The HDMI presentation switch connects to the included passive remote receiver with a user-supplied Cat6 cable (sold separately). The pigtail-style receiver extends 4K video and digital audio signals to an HDMI display up to 50 feet (15.2 meters) away from the switch.
Built-In PoC Technology Provides Receiver Power to Avoid Bulky External Power Bricks
Power over Cable (PoC) technology powers the remote receiver over Cat6 cable. Green and orange LEDs will light up to indicate the system is receiving sufficient power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver away from an AC outlet.
Plug-and-Play Operation for Quick Setup and Immediate Use
The included switch and receiver work right out of the box with no software required. Mounting hardware is included for installing the switch on a wall, pole or 19-inch rack. Connect your devices to the switch's HDMI ports with user-supplied HDMI cables (sold separately), and plug the switch's external power supply into an AC power source.
TAA-Compliant for GSA Schedule Purchases
The B320-4X1-HH-K1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
System Requirements
- Up to 4 source devices with HDMI output
- Display device with HDMI input
Package Includes

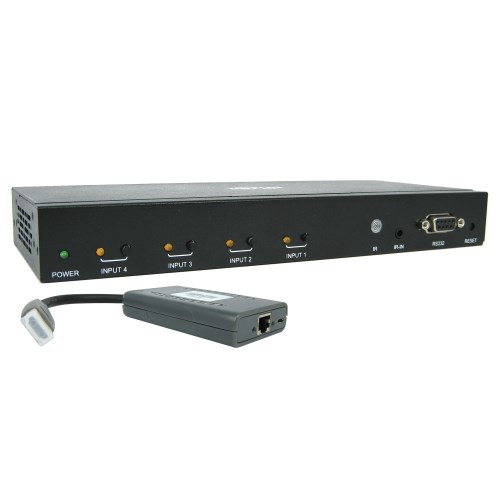

- B320-4X1-HH-K1 4-Port HDMI over Cat6 Presentation Switch/Extender
- IR remote control
- IR receiver cable, 5 ft.
- External power supply with 4.5 ft. cord (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
- (4) International plug adapters (North America, U.K., Europe, Australia)
- Mounting hardware
- Owner's manual
Specifications
OVERVIEW
| UPC Code | 037332256287 |
| Technology | Cat5/5e; Cat6; HDMI |
VIDEO
| Max Supported Video Resolution | 4K x 2K (3840 x 2160) @60Hz |
| HDR Support | Yes |
| 3D Video Supported | Yes |
| Chroma Sub Sampling | 4:4:4 |
INPUT
| Voltage Compatibility (VAC) | 100; 110; 120; 125; 127; 200; 208; 220; 230; 240 |
POWER
| Power Over Cable (PoC) Support | Yes |
| External Power Supply Input Specs (V / Hz / A) | 100-240V~50/60Hz, 0.6A |
| External Power Supply Output Specs (V / A) | 24V/1A |
| External Power Supply Cord Length (ft.) | 4.5 |
| External Power Supply Plug(s) | AS/NZS 3112 Australia; BS 1363 UK; CEE 7/16 Schuko; NEMA 1-15P North America |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | Green (Power), Orange (Input 1-4); RX: Green (Power), Orange (Signal Link) |
PHYSICAL
| Material of Construction | Metal |
| Color | Black |
| Receiver Unit Dimensions (hwd / in.) | 3.74 x 2.36 x 0.73 |
| Receiver Unit Weight (lbs.) | 0.17 |
| Transmitter Unit Dimensions (hwd / in.) | 9.25 x 3.94 x 1.17 |
| Transmitter Unit Weight (lbs.) | 1.43 |
| Unit Packaging Type | Box |
ENVIRONMENTAL
| Operating Temperature Range | 32 to 104°F (0 to 40°C) |
| Storage Temperature Range | 5 to 122°F (-15 to 50°C) |
| Relative Humidity | 0% to 85% RH, Non-Condensing |
COMMUNICATIONS
| Signal Range (ft.) | 50 |
| IR Remote Extension Support | No |
| RS-232 Serial Extension Support | No |
| Consumer Electronics Control (CEC) Supported | No |
| USB Extension Support | No |
CONNECTIONS
| Number of Ports | 4 |
| Side A - Connector 1 | 3.5MM (FEMALE); DB9 (FEMALE); (4) HDMI (FEMALE); RJ45 (FEMALE) |
| Side B - Connector 1 | HDMI (MALE); RJ45 (MALE) |
| Connector Plating | Nickel |
FEATURES & SPECIFICATIONS
| Port Selection | Pushbutton; Remote Selector |
| HDCP Specification | 2.2 |
| Driver Required | No |
| Recommended Category Cable | Cat6 |
| DIN Mountable | No |
| Integrated/Removable Cable | No |
| Multi-Resolution Support | No |
STANDARDS & COMPLIANCE
| Certifications | Tested to CE, FCC, RoHS, REACH |
| External Power Supply Certifications | CCC; CE; FCC; GS; TUV; UL; cUL |
WARRANTY
| Product Warranty Period (Worldwide) | 1-year limited warranty |
