Description
- Share two DVI video sources between two monitors
- Supports DVI Single Link computer resolutions up to 1920 x 1200 @ 60Hz
- Allows either input to be routed to either output, or the one input signal to both outputs
- Transmits over a single Cat5e/6 cable to a remote monitor up to 200-ft. away
- HDCP and EDID compliant
- Plug-and-Play
- A B140-Series remote receiver is needed at each monitor
- Active (powered) and Passive (non-powered) Receivers available
- Use 24AWG Solid Wire Cat5e/6 patch for maximum video performance
- Further expand the range and number of monitors with B140-110 Daisy-Chain Repeaters
- Compliant with the Federal Trade Agreements Act ( TAA ) for GSA schedule purchases
- DVI video cards and DVI monitors

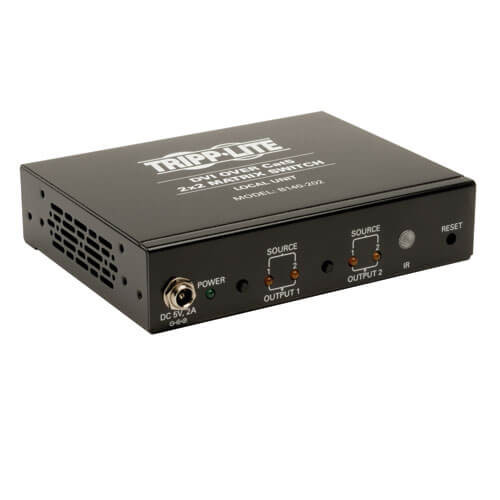

- B140-202 Local Transmitter Unit
- External Power Supply with NEMA 1-15P Plug ( Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A)
- Mounting Hardware
- Remote Control
- Owners Manual
OVERVIEW
| UPC Code |
037332175861 |
| Product Type |
Extender Kit |
| Technology |
DVI; Cat5/5e; Cat6 |
VIDEO
| Max Supported Video Resolution |
1920x1080 (1080p @ 60Hz) |
| Max 720P Range (ft) |
200 |
| Max 1080P Range (ft) |
150 |
| Max 1280 x 720 (720p) Range (ft) |
150 |
| Max 1920 x 1080 (1080p) Range (ft) |
150 |
| Transmitter Video Input |
DVI-I |
| Transmitter - Number of Video Outputs |
2 |
| Range Extension using other Tripp Lite product |
175ft @ 1024 x 768 XGA 125ft @ 1920 x 1080 UXGA |
| Recommended Cabling |
N202-Series Cat6 Patch Cable |
| Other Tripp Lite product used to extend range |
B140-110 |
| HDR Support |
No |
| 3D Video Supported |
Yes |
| Maximum Signal Range (ft) |
200 |
| Maximum Signal Range Details |
200 ft @ 1024 x 768 XGA
150 ft @ 1920 x 1080 UXGA
|
POWER
| Power Source Type |
AC Adapter |
| AC Plug Type |
NEMA 1-15P |
| Power Source |
Unit (Included) |
| Power Over Cable (PoC) Support |
No |
| AC Adapter |
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A |
| External Power Supply Input Specs (V / Hz / A) |
100-240V / 50-60Hz / 0.5A |
| External Power Supply Output Specs (V / A) |
5V/2A |
| External Power Supply Cord Length (ft.) |
4.5 |
| External Power Supply Cord Length (m.) |
1.4 |
| DC Barrel Plug |
OD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators |
Power (Green); Output 1, 2 (Orange); RJ45 ports: Green (Connection), Orange (Data Transmission) |
PHYSICAL
| Color |
Black |
| Included Mounting Accessories |
Wallmount |
| Number of Displays |
2 |
| Form Factor/Mounting Options |
Box; Wall-mount |
| Shipping Dimensions (hwd / in.) |
6.30 x 2.50 x 8.30 |
| Shipping Weight (lbs.) |
1.60 |
| Unit Dimensions (hwd / in.) |
1.2 x 5.0 x 3.9 |
| Unit Packaging Type |
Box |
| Unit Weight (lbs.) |
0.8 |
| Housing |
Metal |
ENVIRONMENTAL
| Operating Temperature Range |
32 to 104 °F (0 to 40 °C) |
| Storage Temperature Range |
5 to 122 °F (-15 to 50 °C) |
| Relative Humidity |
0% to 85%, Non-Condensing |
COMMUNICATIONS
| Max 1024 x 768 Range (ft) |
200 |
| Max 480P Range (ft) |
200 |
| Max 1440 x 900 Range (ft) |
200 |
| Max 1080i Range (ft) |
150 |
| Max 480i Range (ft) |
200 |
| Max 640 x 480 Range (ft) |
200 |
| Max 800 x 600 Range (ft) |
200 |
| Max 1600 x 1200 Range (ft) |
200 |
| EDID Compatible |
Yes |
| IR Remote Extension Support |
No |
| RS-232 Serial Extension Support |
No |
| Consumer Electronics Control (CEC) Supported |
Yes |
| USB Extension Support |
No |
CONNECTIONS
| Number of Ports |
2 |
| Side A - Connector 1 |
(2) DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK) |
| Side B - Connector 1 |
(2) RJ45 (FEMALE) |
FEATURES & SPECIFICATIONS
| Driver Required |
No |
| 10/100 Ethernet Extension Support |
No |
| Built-In Equalizer |
No |
STANDARDS & COMPLIANCE
| Certifications |
Tested to FCC, RoHS, REACH |
| External Power Supply Certifications |
FCC; PSE; TUV; UL; cUL |
WARRANTY
| Product Warranty Period (Worldwide) |
1-year limited warranty |
